PowerFlex 753 VSD 400V Flange Mount | 43A 22kW ND | PID Control | IP20 by NHP

BRAND: NHP
SKU: 20F11FC043JA0NNNNN
$8,687.50 List price: $11,535.90
+
Variable speed drive with 400V flange mount and 43A 22kW normal duty—ideal for industrial and commercial motor control. Built for precise speed and torque management, with PID control and dynamic braking for enhanced performance.

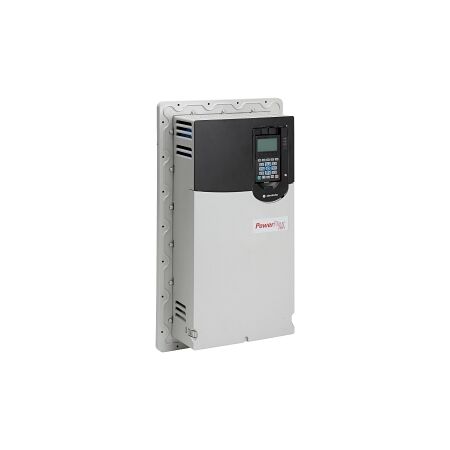

Product Name/Title: Allen-Bradley PowerFlex 753 VSD 400V Flange Mount 43A 22kW ND or 37A 18.5kW HD Frame 3

Brand: NHP

SKU: 20F11FC043JA0NNNNN

Alternatively Known As: PowerFlex 753 Variable Speed Drive, PF753 VSD, Allen-Bradley VSD

Technical Specifications
  • Number of phases input: 3
  • Nominal input voltage: 415 V
  • Nominal output power AC: 22 kW
  • Nominal output current I2_n: 43 A
  • KW rating normal duty: 22 kW
  • KW rating heavy duty: 18.5 kW
  • Dynamic braking transistor: Yes
  • Control characteristic: PID
  • EMC version: Yes
  • Suitable for safety functions: Yes
  • Contains keypad: No
  • Frame size: 3
  • Degree of protection IP: IP20
  • Dimensions (H x L x W): 400mm x 200mm x 300mm
  • Weight: 10 kg
Key Features
  • Variable speed drive for precise control of motor speed and torque.
  • Dynamic braking transistor for enhanced performance.
  • PID control characteristic for improved process control.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing, processing plants, and automation systems
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 753 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.

Non-Returnable & Non-Cancellable

20F11FC043JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf (20F11FC043JA0NNNNN-AU-PF753-Variable-Speed-Drive-Datasheet.pdf, 1,328 Kb) [Download]
