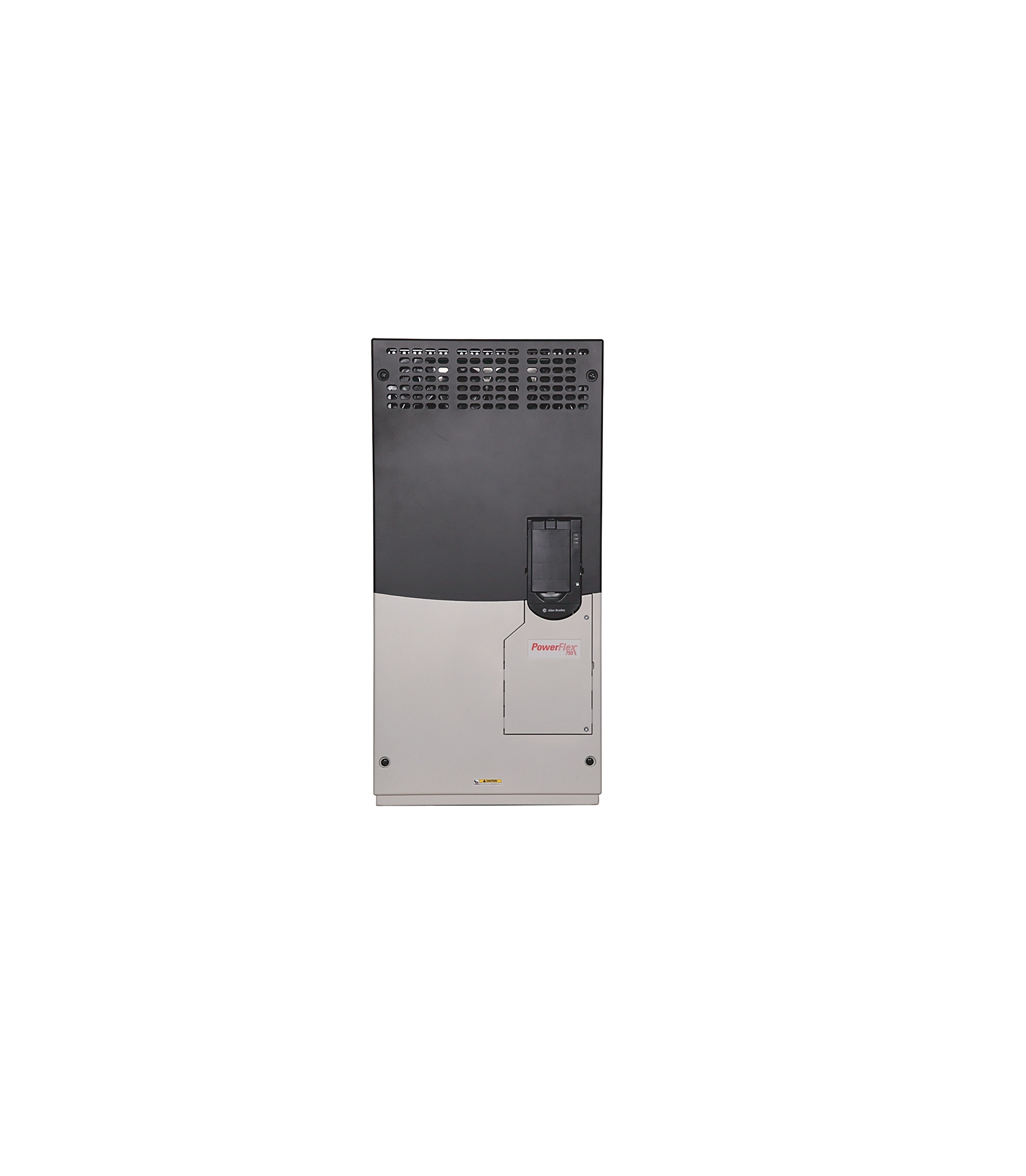

PowerFlex 755 AC Drive 250kW | 456 Amps | Ethernet/IP & Forced Air Cooling | Open Type by Allen-Bradley
PowerFlex 755 AC Drive with 250kW power rating and 456 Amps current—ideal for industrial motor control and automation. Built for manufacturing processes and HVAC systems, with embedded Ethernet/IP for seamless network integration and forced air cooling for enhanced thermal management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PowerFlex 755 AC Drive 250kW | 456 Amps | Ethernet/IP & Forced Air Cooling | Open Type by Allen-Bradley
Brand: Allen-Bradley
SKU: 20G1ANC456JA0NNNNN
Alternatively Known As: PowerFlex 755 AC Drive, Allen Bradley Variable Frequency Drive, 250kW VFD, 20G1ANC456JA0NNNNN Drive
Technical Specifications
- Power Rating: 250kW Normal Duty, 200kW Heavy Duty
- Current Rating: 456 Amps
- Input Voltage: 400 VAC, 3 Phase
- Frame Size: 7
- Cooling Method: Forced Air
- Input Features: Precharge included, filtered input with CM jumper
- Output Features: DB transistor
- Enclosure Type: Open Type
- Communication: Embedded Ethernet/IP
- Human Interface Module: Not included
- Dimensions (H x L x W): 600mm x 300mm x 400mm
- Weight: 150 kg
Key Features
- Embedded Ethernet/IP for seamless network integration
- Standard protection features for reliable operation
- Forced air cooling for enhanced thermal management
- AC input with precharge for safe startup
- Open type enclosure suitable for controlled environments
- Filtered input with CM jumper installed for noise reduction
- DB transistor output for efficient motor control
- No Human Interface Module (HIM) included
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with industrial drives to ensure compliance with safety and operational standards.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems requiring variable speed control
- Pumps, fans, and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Improved process efficiency lowers overall environmental impact
- Reduced heat generation minimizes cooling requirements
Warranty Information
1 year warranty covering manufacturing defects and performance issues under normal use.
Available Now
This product available now for immediate purchase.
