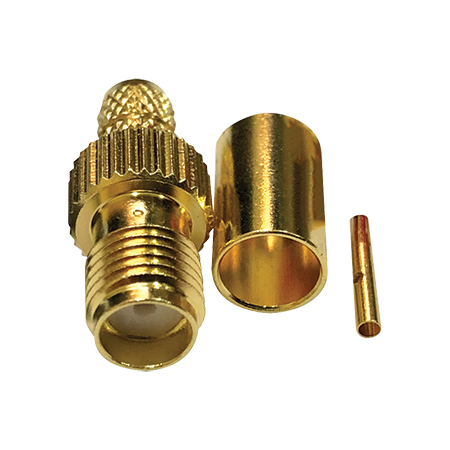

SMA Crimp Socket for LL-LMR195 & RG58 | 50 Ohm | Gold Plated | DC to 18 GHz by Matchmaster
SMA crimp socket with 50 Ohm impedance and gold plating—ideal for telecommunications and networking. Built for reliable signal transmission, compatible with LL-LMR195 and RG58 cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SMA Crimp Socket for LL-LMR195 and RG58 50 Ohm Cable
Brand: Matchmaster
SKU: 56MM-SMA58F
Alternatively Known As: SMA Crimp Connector, SMA Socket Connector, 50 Ohm SMA Crimp Plug, SMA Coaxial Connector
Technical Specifications
- Impedance: 50Ω nominal
- Material: Gold plated brass with gold plated beryllium copper centre pin
- Dielectric: PTFE
- Frequency Range: Up to 12GHz
- Cable Compatibility: 5mm OD 50 ohm coaxial cables including RG58 and LL-LMR195
- Crimp Tool: Hex5.4
- Dimensions (H x L x W): 10mm x 20mm x 10mm
- Weight: 0.1 kg
Key Features
- Sub-miniature version A crimp style 50Ω SMA socket coaxial connector
- Gold plated brass connector with gold plated beryllium copper centre pin
- PTFE dielectric for reliable insulation
- Reliable and robust screw-on SMA socket for linking cables
- Suitable for frequencies up to 12GHz
- Designed for crimping using hex5.4 tool
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper crimping and connection integrity.
Applications
- Cellular and 2-Way Radio cable connections
- Coaxial cable linking for communication systems
- Suitable for 5mm OD 50 ohm coaxial cables including RG58 and LL-LMR195
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable gold plating reduces corrosion and extends product life, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The SMA Crimp Socket for LL-LMR195 and RG58 50 Ohm Cable by Matchmaster is available now for immediate purchase. Ideal for cellular and 2-way radio communication cable connections.
