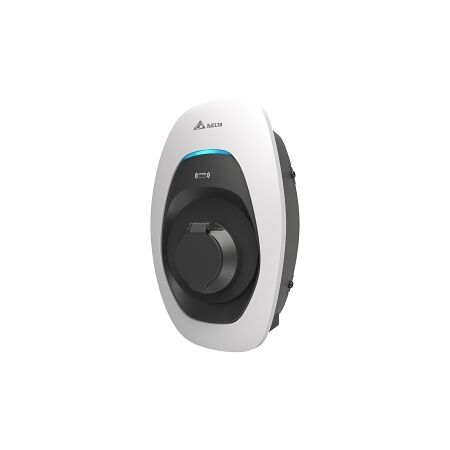

Smart EV Charger 7-22kW T2 Socket Wall Mount Delta Electronics
Designed for fast electric vehicle charging with up to 22kW output and a Type 2 socket for residential and commercial installations. Features wall mounting, IP55 protection, IK09 impact resistance, load management and communication interface support. Built with one Type 2 connector, wall-mounted installation and compliance with AS/NZS 5033 for photovoltaic system installations. Continue below for detailed specifications, installation requirements and application information.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Connection Power: 22 kW
- Max Power per Charging Point: 22 kW
- Load Management: Yes
- Communication Interface: Yes
- Access Control: Yes
- Mounting Method: Wall mounting
- Degree of Protection: IP55
- Impact Strength: IK09
- Number of Vehicle Connectors Type 2: 1
- Number of Charging Units: 1
- Dimensions (H x L x W): 371mm x 167mm x 218mm
- Weight: 5 kg
Key Features
- Nominal connection power of 22 kW for fast charging.
- Wall mounting design for easy installation.
- IP55 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging for electric vehicles
- Commercial: Charging stations for businesses and public areas
Standards & Compliance
- Complies with AS/NZS 5033 for installation of photovoltaic (solar) systems.
Environmental Benefits
- Promotes the use of electric vehicles, reducing carbon emissions.
- Energy-efficient charging reduces overall power consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Delta AC Max Smart EV Charger is available now for immediate purchase, ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: What is the maximum charging power of this Smart EV Charger?
A: The charger provides a nominal and maximum charging power of 22kW with a single Type 2 charging connector.
Q: Where can this EV charger be installed?
A: It is designed for wall mounting and is suitable for residential home charging as well as commercial charging stations for businesses and public areas.
Pair this charger with an EV charging cable Type 2 to Type 2 7m 3 Phase for compatible high-capacity charging installations.
Add an EV charging cable holder to keep charging cables organised and protected between charging sessions.
Install with an EV charging station pedestal floor standing aluminum when a freestanding charging location is required.
Review the commercial EV charger selection guide to compare charging solutions for residential and commercial projects.
