Split-Jaw TightSight Meter 200A AC/DC | 0-200A Measurement | True RMS | Non-Contact Voltage Detection by Ideal Electrical
The Split-Jaw™ TightSight™ Meter 200A AC/DC is designed for accurate electrical testing, measuring up to 200A and 1000V AC/DC. Ideal for professionals in residential, commercial, and industrial settings, it features a patented dual backlit display and non-contact voltage detection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

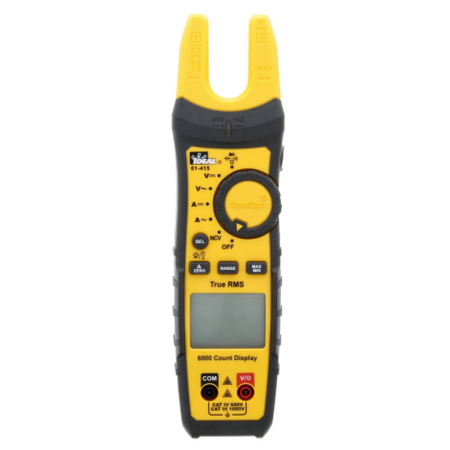

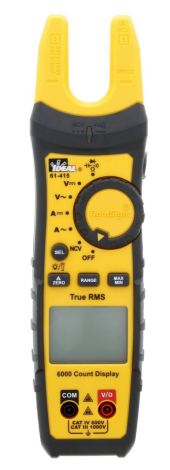

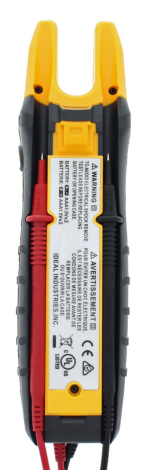

Product Name/Title: Split-Jaw™ TightSight™ Meter 200A AC/DC
Brand: Ideal Electrical
SKU: IDL61-415
Alternatively Known As: Split Jaw Clamp Meter, TightSight Fork Meter, 200A AC/DC Clamp Meter, True RMS Fork Meter, Electrical Clamp Meter
Technical Specifications
- AC Current Measurement: 0-200 Amps
- Voltage Measurement: 0-1000 Volts AC/DC
- Jaw Opening: 0.75 inch (19mm)

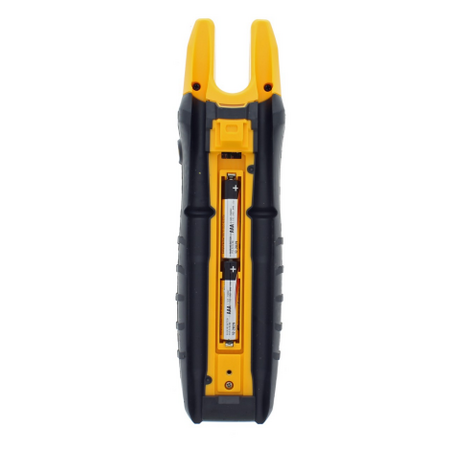

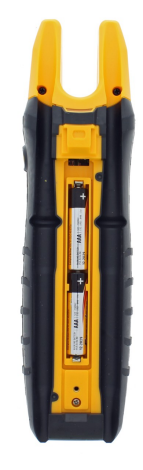

- Battery Type: 2 x 1.5V AAA
- Drop Protection: 2 meters (6.6 feet)

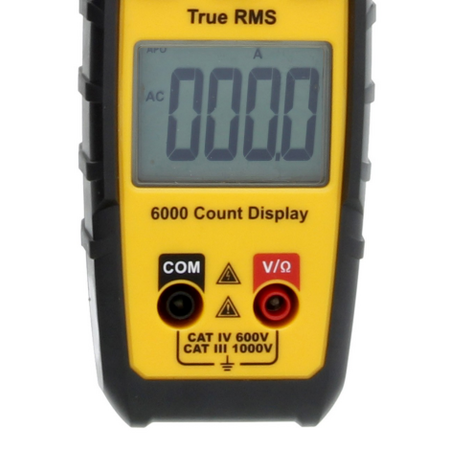

- Dual Backlit LCD Displays
- Non-contact Voltage Sensor Range: 40V to 600V
- Safety Ratings: CAT IV 600V, CAT III 1000V
- Functions: Continuity, Resistance, Capacitance, Diode Testing, Data Hold, Min/Max, Relative, Auto Ranging, Auto Power Off
- Includes: Soft case, test leads, batteries
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- CAT IV 600V and CAT III 1000V safety ratings
- True RMS digital fork meter with auto-ranging
- .75 inch (19mm) jaw opening for large gauge cables
- Measures up to 200 Amps AC/DC and 1000V AC/DC with test leads

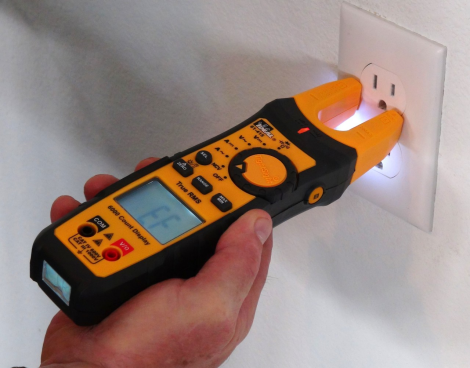

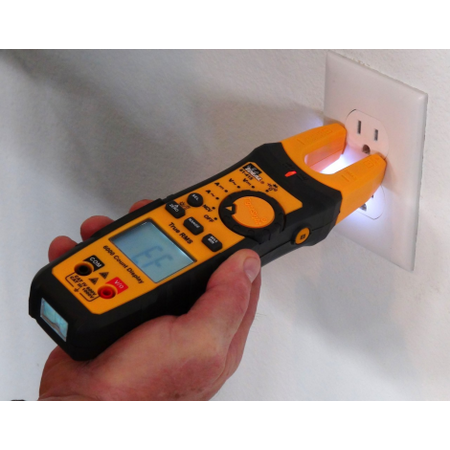

- Non-contact voltage sensor detecting 40V to 600V

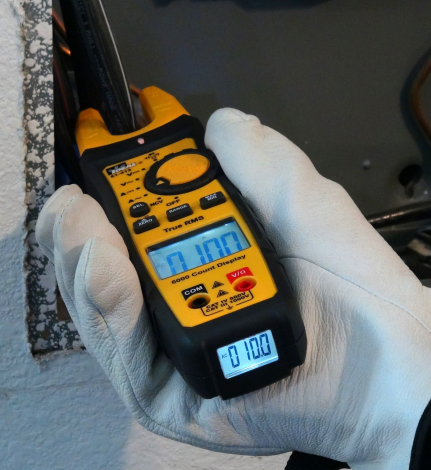

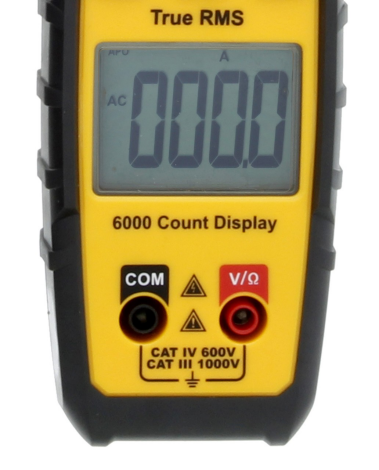

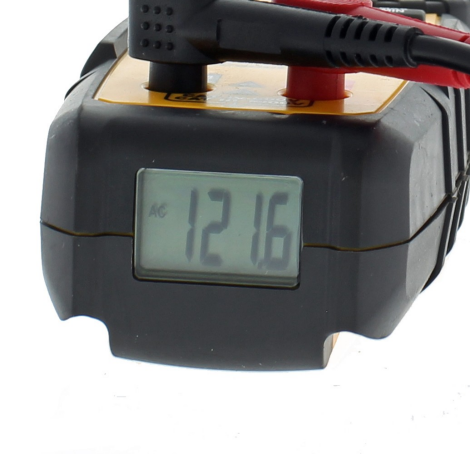

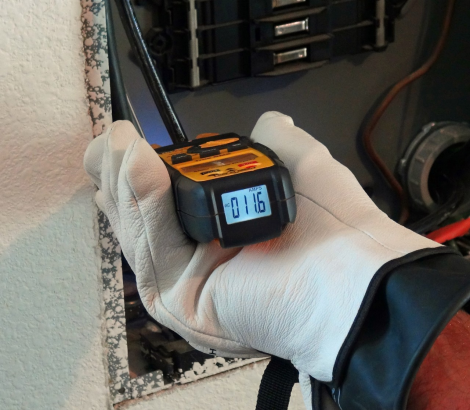

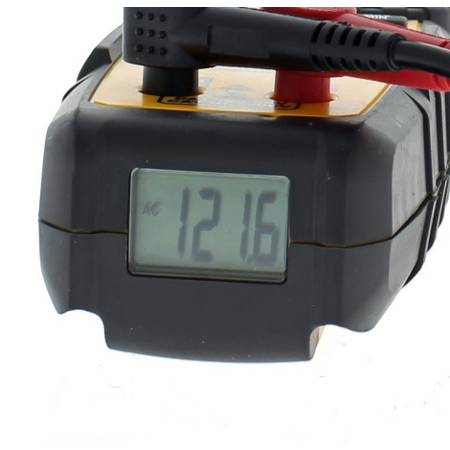

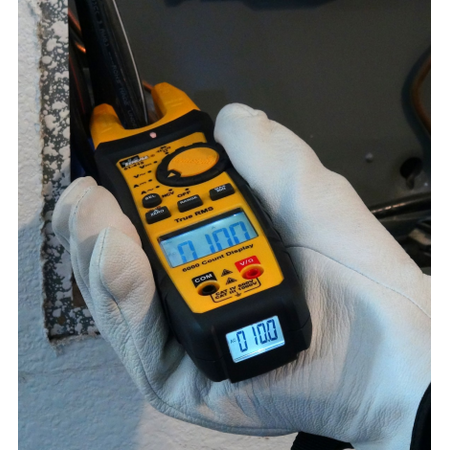

- Patented TightSight® dual backlit display for safer viewing

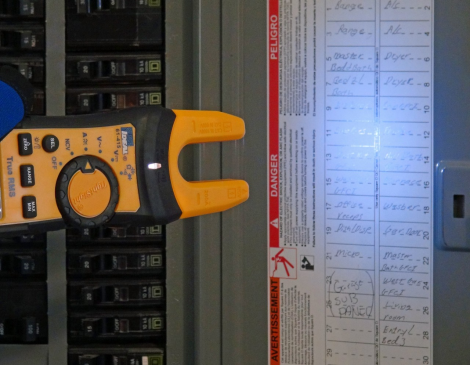

- Built-in flashlight for low-light environments
- Audible and LED alerts for voltage, continuity, and NCV detection
- Dual-position built-in probe tip holder for one-handed operation
- Industrial-grade over-molding with 2 m drop protection
- Functions include HOLD, MIN/MAX, Relative, Range, and Auto Power Off
Professional Installation Requirements
- Professional installation is not required; however, use by qualified personnel is recommended for safety and accuracy.
Applications
- Electrical testing and measurement in residential, commercial, and industrial environments

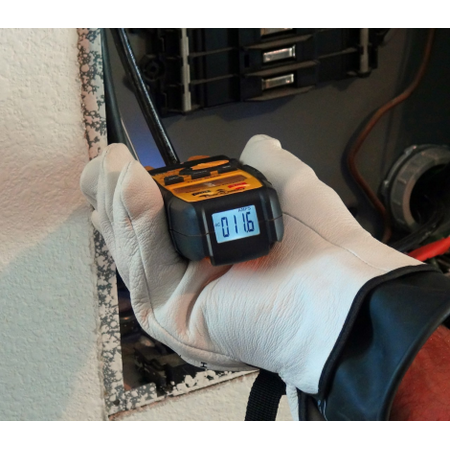

- Measuring AC/DC current and voltage in electrical panels and circuits
- Troubleshooting electrical systems with continuity, resistance, capacitance, and diode testing
- Non-contact voltage detection for safety checks
- Work in low-light conditions with built-in flashlight and backlit displays
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Auto power off feature conserves battery life and reduces waste
- Durable design reduces need for frequent replacements
- Accurate measurements help optimize electrical system efficiency
Warranty Information
Limited 2 Year warranty against manufacturing defects.
Available Now
The Ideal Electrical Split-Jaw™ TightSight™ Meter 200A AC/DC is available for immediate purchase, ideal for electrical professionals requiring safe and accurate current and voltage measurements.
