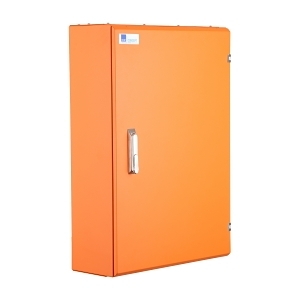

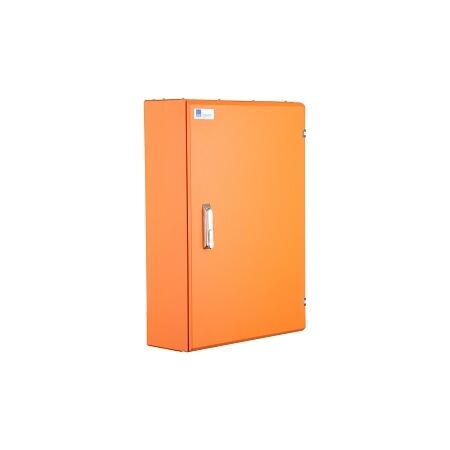

Stainless Steel Panelboard 36 Way | 250A | IP66 Rated | Surface Mount by NHP

BRAND: NHP
SKU: CPR36SSO
$7,198.60 List price: $9,558.80
+
Stainless steel panelboard with 36 outgoing ways and 250A capacity—ideal for industrial and commercial electrical distribution. Built for durability with IP66 protection and surface mount design.

Product Name/Title: NHP Concept Premier Panelboard 864mm IP66 DIN-T 36 Way 250A No Main Switch Stainless Steel ORG

Brand: NHP

SKU: CPR36SSO

Alternatively Known As: NHP Panelboard, Stainless Steel Distribution Board, IP66 Panelboard

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 36
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Material Housing: Stainless Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 864mm x 240mm x 600mm
  • Weight: 25 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • Stainless steel construction for durability and corrosion resistance.
  • 36 outgoing ways for versatile electrical distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Factories, manufacturing plants
  • Commercial: Retail spaces, office buildings
  • General: Any location requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Premier Panelboard is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical distribution.

CPR36SSO-AU-Concept-Premier-Panelboard-Datasheet.pdf (CPR36SSO-AU-Concept-Premier-Panelboard-Datasheet.pdf, 1,356 Kb) [Download]
