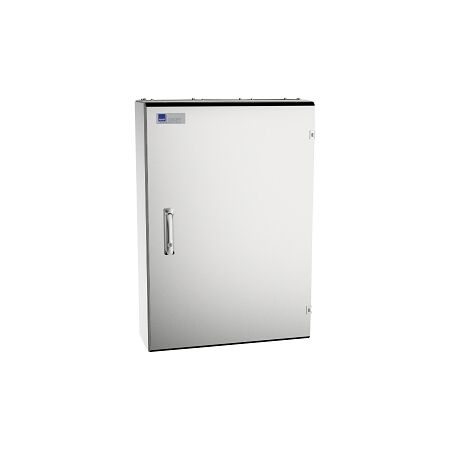

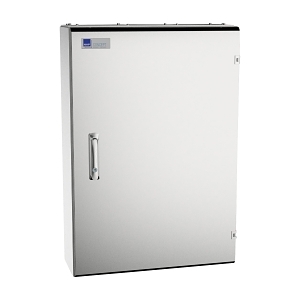

Stainless Steel Panelboard 60 Way | 250A | IP66 Rated | 1080mm by NHP

BRAND: NHP
SKU: CPR60SS
$8,914.90 List price: $11,837.80
+
Stainless steel panelboard with 60 outgoing ways and 250A rated current—ideal for industrial and commercial electrical distribution. Built for durability and corrosion resistance, with IP66 protection for dust and water resistance.

Product Name/Title: NHP Concept Premier Panelboard 1080mm IP66 DIN-T 60 Way 250A No Main Switch Stainless Steel

Brand: NHP

SKU: CPR60SS

Alternatively Known As: NHP Panelboard, Stainless Steel Distribution Board, IP66 Panelboard

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 60
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Earthing Terminal Block: Yes
  • Material Housing: Stainless Steel
  • Material Thickness: 1.6 mm
  • Degree of Protection: IP66
  • Impact Strength: IK10
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1080mm x 240mm x 600mm
  • Weight: 25 kg
Key Features
  • IP66 rated for dust and water protection.
  • Stainless steel construction for durability and corrosion resistance.
  • 60 outgoing ways for extensive electrical distribution.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for safety and compliance.
Applications
  • Industrial: Factories, manufacturing plants
  • Commercial: Retail spaces, office buildings
  • General: Any location requiring robust electrical distribution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Premier Panelboard 1080mm IP66 DIN-T 60 Way 250A No Main Switch Stainless Steel is available now for immediate purchase, ideal for industrial and commercial electrical distribution.

CPR60SS-AU-Concept-Premier-Panelboard-Datasheet.pdf (CPR60SS-AU-Concept-Premier-Panelboard-Datasheet.pdf, 1,432 Kb) [Download]
