Trade Discount 33%

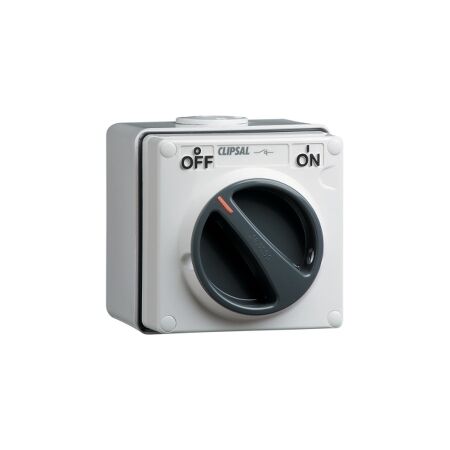

Surface Switch 1 Gang 3 Pole | 500VAC 50A | IP66 Chemical Grey by Clipsal
Surface switch with 500VAC and 50A capacity—ideal for industrial control applications. Built for durability, with IP66 protection and chemical grey finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 3 Pole, 500VAC, 50A - Chemical Grey
Brand: Clipsal
SKU: 56SW350-CG
Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Switch, Surface Mount Switch
Technical Specifications
- Rated operational voltage: 500 V AC 50 Hz
- Rated current: 50 A
- Material: Polycarbonate (PC)
- Breaking capacity: 50 kA
- Rated short-circuit making capacity: 2.1 kA
- Rated impulse withstand voltage: 4 kV
- Rated short-time withstand current: 1.5 kA for 1 s
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 107mm x 108mm x 101mm
- Weight: 0.74 kg
Key Features
- 3-pole rotary knob control type.
- IP66 rated for protection against dust and water.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control applications in small commercial and utility industries.
Standards & Compliance
- Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
- Compliant with RoHS directives and regulations.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Surface Switch 1 Gang 3 Pole 500VAC 50A in Chemical Grey is available now for immediate purchase. Ideal for industrial control applications.
