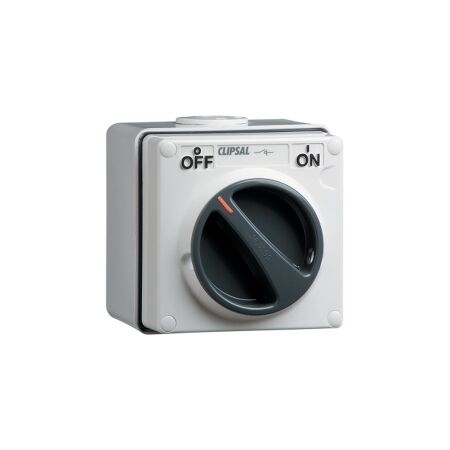

Surface Switch 1 Gang 3 Pole | 500VAC 50A | IP66 Rated | Resistant White by Clipsal

BRAND: Clipsal
SKU: 56SW350-RW
$177.10 List price: $265.70
+ −
30 Days Return Delivery Options
Surface switch with 3-pole rotary control and 500VAC 50A rating—ideal for small commercial and industrial applications. Built for durability, with IP66 protection against dust and water.

Product Name/Title: Clipsal - 56 Series, Surface Switch, 1 Gang, 3 Pole, 500VAC, 50A - Resistant White Electric

Brand: Clipsal

SKU: 56SW350-RW

Alternatively Known As: Clipsal 56 Series Switch, 3 Pole Surface Switch, Industrial Switch

Technical Specifications
  • Rated operational voltage: 500 V AC 50 Hz
  • Rated current: 50 A
  • Material: Polycarbonate (PC)
  • Marking: ON-OFF
  • Breaking capacity: 50 kA
  • Rated short-circuit making capacity: 2.1 kA
  • Rated impulse withstand voltage: 4 kV
  • Rated short-time withstand current: 1.5 kA for 1 s
  • Tightening torque: 0.8 N.m
  • Dimensions (H x L x W): 107mm x 108mm x 101mm
  • Weight: 0.74 kg
Key Features
  • 3-pole switch with rotary knob control
  • IP66 rated for protection against dust and water
  • Rated operational voltage of 500VAC and current of 50A
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial
  • Utility
  • Industry
Standards & Compliance
  • Complies with AS/NZS 3133 and AS 60529.
Environmental Benefits
  • Compliant with RoHS directive and Reach regulation.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Surface Switch 1 Gang 3 Pole 500VAC 50A is available now for immediate purchase. Ideal for small commercial and industrial applications.

56SW350-RW (56SW350-RW, 227 Kb) [Download]
