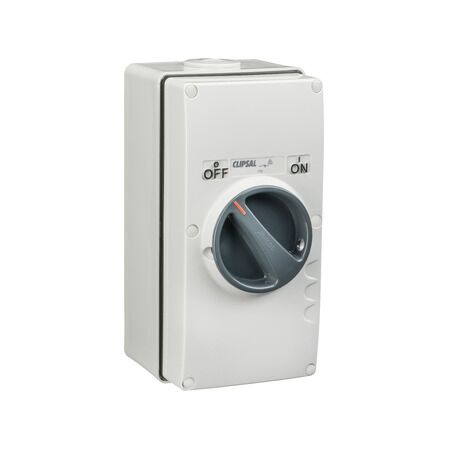

Surface Switch 2 Gang 3 Pole 40A | IP66 Rated | Grey by Clipsal
Surface switch with 2 gang and 3 pole configuration, rated for 40A at 500V AC—ideal for industrial and commercial applications. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Surface Switch, 2 Gang Three Pole 40A Base Mount - Grey
Brand: Clipsal
SKU: 56SWHS340-GY
Alternatively Known As: Clipsal 56 Series Switch, 40A Rotary Switch, Industrial Surface Switch
Technical Specifications
- Rated operational voltage: 500V AC 50Hz
- Rated current: 40A
- IP Rating: IP66 conforming to AS 60529
- Breaking capacity: 40 kA at 500V (AC-21A)
- Poles description: 3P
- Tightening torque: 0.8 N.m
- Dimensions (H x L x W): 112mm x 204mm x 102mm
- Weight: 0.9 kg
Key Features
- Rotary knob control type for easy operation.
- IP66 rated for protection against dust and water.
- Rated for 40A at 500V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for utility and small commercial applications.
Standards & Compliance
- Complies with AS/NZS 3133 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and mercury-free.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal 56 Series Surface Switch 2 Gang Three Pole 40A Base Mount in Grey is available now for immediate purchase. Ideal for industrial and commercial applications.
