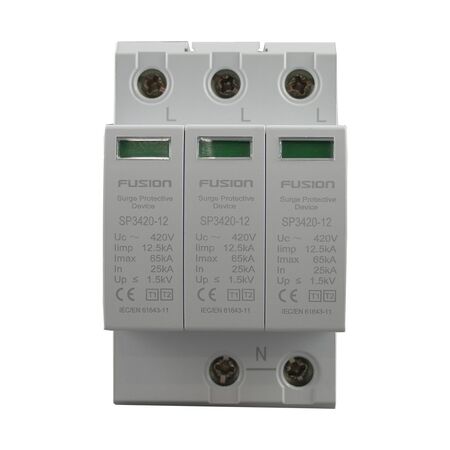

Surge Arrestor Type 1+2 | 3 Pole 420V | 12.5kA L-L-L-N | DIN Rail by Connected Switchgear
Surge arrestor with 420V and 12.5kA capacity—ideal for residential, commercial, and industrial surge protection. Built for safety with DIN rail mounting and visual status indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Surge Arrestor Type 1+2, 3 Pole 420V 12.5kA L-L-L-N
Brand: Connected Switchgear
SKU: SP3420-12
Alternatively Known As: Surge Protector, Surge Suppressor, Lightning Arrestor
Technical Specifications
- Product Code: SP3420-12
- Voltage: 420V AC
- Poles: 3P
- Configuration: L-L-L-N connection
- I_{n}: 25kA, I_{imp}: 12.5kA, I_{max}: 100kA
- Waveform: 10/350us, 8/20us
- U_{p} ≤1.5kV
- Width: 54mm
- DIN Rail Mounting: 35mm
- Dimensions (H x L x W): 90mm x 35mm x 54mm
- Weight: 1.5 kg
Key Features
- Type 1 + Type 2 surge protection.
- 3 Pole width with L-L-L-N terminal connection.
- Easy installation with DIN rail mount.
- Fail-safe design with optional remote indicator.
- IP2X design for enhanced safety.
- Visual indicator for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Residential: Homes and apartments requiring surge protection.
- Commercial: Retail and office spaces needing reliable electrical safety.
- Industrial: Factories and facilities exposed to lightning strikes and power surges.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Protects electrical systems, reducing the risk of damage and waste from power surges.
Warranty Information
5 Year Replacement Warranty on the Surge Arrestor 3P 420V.
Available Now
The Surge Arrestor Type 1+2, 3 Pole 420V 12.5kA is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring surge protection.
