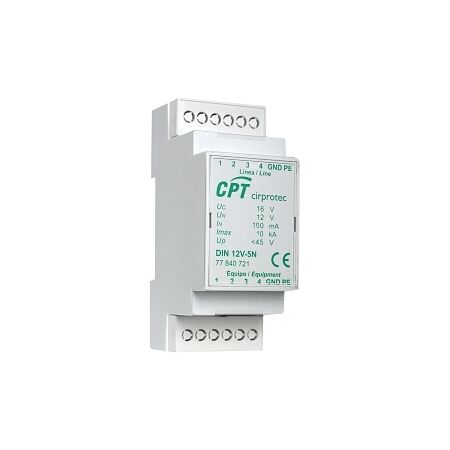

Cirprotec Final Diverters SPD Analogue 12V 4 Wires

Surge Protection Device 12V | 4 Wires | DIN Rail Mount | IP20 by NHP

BRAND: NHP

SKU: CPTDIN12V5N

$385.20 List price: $511.40

+ −

30 Days Return Delivery Options

Surge protection device with 12V nominal voltage and 4-wire protection—ideal for residential, commercial, and industrial applications. Built for final stage protection, with easy DIN rail mounting and IP20 indoor rating.

Description
Attachments

Product Name/Title: Cirprotec Final Diverters SPD Analogue 12V 4 Wires

Brand: NHP

SKU: CPTDIN12V5N

Alternatively Known As: Surge Protection Device, Final Diverter, SPD 12V

Technical Specifications

Nominal Voltage AC: 12 V
Max Continuous Voltage AC: 16 V
Nominal Discharge Surge Current (8/20): 5 kA
Max Discharge Surge Current (8/20): 10 kA
Lightning Impulse Current (10/350 µs): 10 kA
Voltage Protection Level (Core-Earth): 45 V
Voltage Protection Level (Core-Signal Ground): 27 V
Frequency: 500000 MHz
Number of Protected Wires: 4+GND
Mounting Method: DIN rail (top hat rail) 35 mm
Degree of Protection: IP20
Max Conductor Cross Section: 2.5 mm²
Dimensions (H x L x W): 90mm x 60mm x 36mm
Weight: 0.08 kg

Key Features

Surge Protection Device designed for final stage protection.
IP20 rated for indoor use.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, offices
Commercial: Retail, hospitality, workspaces
Industrial: Machinery and equipment protection

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Protects electrical systems, reducing waste from damaged equipment.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec Final Diverters SPD Analogue 12V 4 Wires is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

Non-Returnable & Non-Cancellable

CPTDIN12V5N-AU-Surge-Protection-Device-Final-Datasheet.pdf (CPTDIN12V5N-AU-Surge-Protection-Device-Final-Datasheet.pdf, 248 Kb) [Download]
