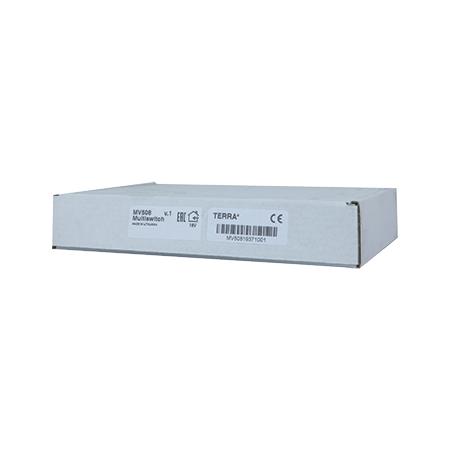

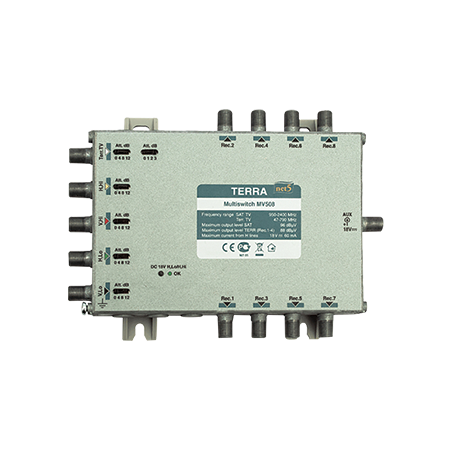

TERRA 5 Wire Multiswitch 5 In 8 Out | Remote Powered | Wideband by Matchmaster

BRAND: Matchmaster

SKU: 21MM-MV508

$334.20 List price: $404.50

+ −

30 Days Return Delivery Options

TERRA 5 wire multiswitch with 5 inputs and 8 outputs—ideal for homes and commercial buildings. Built for flexible satellite distribution, with remote power for energy efficiency.

Description
Attachments

Product Name/Title: TERRA 5 Wire Multiswitch 5 In 8 Out Remote Powered

Brand: Matchmaster

SKU: 21MM-MV508

Alternatively Known As: 5 Wire Multiswitch, Satellite Multiswitch, Pay TV Multiswitch

Technical Specifications

Frequency Range: SAT IF 950-2400MHz, Terr. TV 47-862MHz
SAT IF Gain: Outputs 1-4: 5 ÷ 14dB, Outputs 5-8: 4 ÷ 12dB
Terr. TV Gain: Outputs 1-4: -1 ÷ 5dB, Outputs 5-8: -2 ÷ 3dB
Gain Adjustment SAT IF: 12dB by 4dB Step
Gain Adjustment Terr. TV: 15dB by 1dB Steps
Output Level for SAT IF: 105dBµV, Terr. TV Outputs 1-4: 88dBµV, Outputs 5-8: 86dBµV
Current Consumption: From Receiver <65mA, From Inputs H Lines or External Power Supply +18 V 60mA
Operating Temperature Range: -20° ÷ +50°C
Dimensions (H x L x W): 30mm x 187mm x 135mm
Weight: 0.6 kg

Key Features

Foxtel approved (F30822)
Length of the subscriber line up to 80 meters
Four positions discrete gain regulator for each satellite IF line
Separate 16 positions discrete gain regulator for terrestrial TV
Active terrestrial TV path powering from central power supply

Professional Installation Requirements

Professional installation is recommended for optimal performance and compliance with local regulations.

Applications

Large installations of satellite IF distribution systems
Residential and commercial projects requiring high-quality signal distribution

Environmental Benefits

Efficient signal distribution reduces energy consumption in large installations.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The TERRA 5 Wire Multiswitch 5 In 8 Out Remote Powered is available now for immediate purchase. Ideal for large installations requiring reliable signal distribution.

Brochure (21mm-mv508_brochure.pdf, 374 Kb) [Download]

Manual (21mm-mv508_manual.pdf, 241 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
