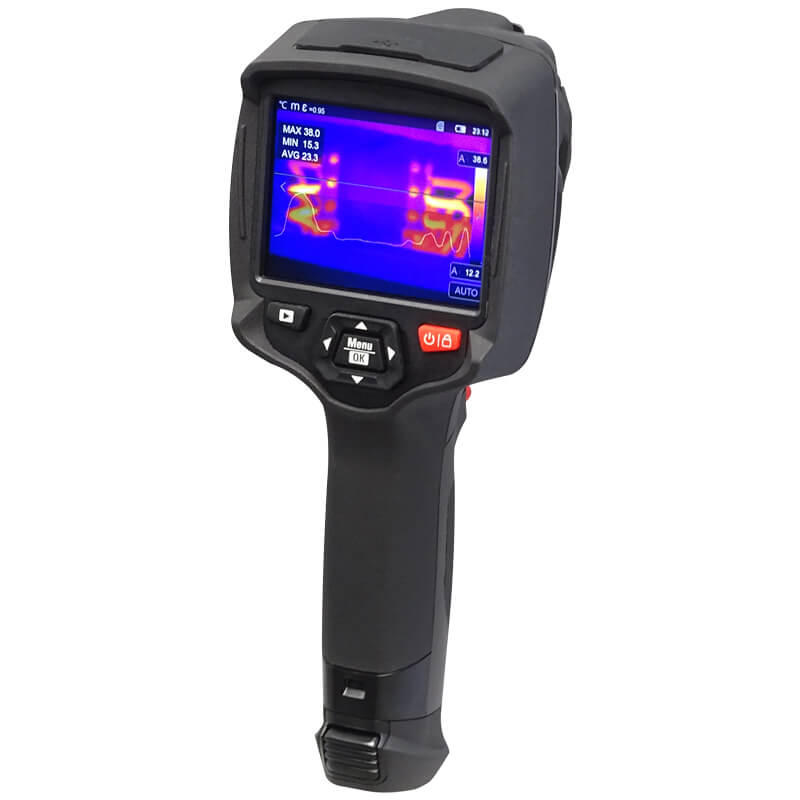

Thermal Imager 160 x 120px | 50Hz Frame Rate | Wi-Fi Enabled & 16x Digital Zoom | -20°C to 650°C by Majortech
Capture thermal images with the 160 x 120px thermal imager, featuring a 50Hz frame rate and Wi-Fi capability for easy image transfer. Ideal for HVAC and electrical inspections, it offers a wide temperature range from -20°C to 650°C and includes advanced features like 16x digital zoom and thermal fusion.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Thermal Imager 160 x 120px | 50Hz Frame Rate | Wi-Fi Enabled & 16x Digital Zoom | -20°C to 650°C by Majortech
Brand: Majortech
SKU: MTi15
Alternatively Known As: Thermal Camera, Infrared Imager, IR Thermal Imager, Thermal Imaging Camera, Thermal Scanner
Technical Specifications
- Field of View: 20.7° x 15.6° at 0.5m
- Spatial Resolution (IFOV): 1.88 mrad
- Thermal Sensitivity/NETD: <0.05°C at 30°C (50mK)
- Image Frequency: 50Hz
- Focus Mode: Manual
- Zoom: 1x to 32x continuous digital zoom
- Focal Length: 9mm
- Focal Plane Array (FPA) / Spectral Range: Uncooled microbolometer / 8-14 µm
- IR Resolution: 160 x 120 pixels
- Display: 3.5 inch LCD, 640 x 480 pixels
- Image Modes: IR Image, Picture-in-Picture, Visual Image, Fusion
- Colour Palettes: Iron, Rainbow, Grey, Grey inverted, Brown, Blue/Red, Hot/Cold, Feather, Above, Below & Zone Alarm
- Temperature Range: Low -20°C to 150°C, High 0°C to 650°C
- Temperature Accuracy: ± (2°C or ± 2%)
- Spot Measurement: Centre spot, 3 adjustable spots
- Line Measurement: 2 lines (horizontal or vertical)
- Area Measurement: 3 areas with max/min/average
- Automatic Hot/Cold Detection: Auto hot or cold markers
- Emissivity Correction: Variable 0.01 to 1.0 with standard emissivity table
- Measurement Corrections: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
- Video Storage: 4GB Micro SD card
- Video Format: MPEG-4 encode, 640x480 at 30fps
- Image Storage: JPEG or HIR files including measurement data
- Built-in Camera: 2 Megapixels
- Interfaces: USB Type-C for data and live video transfer
- Power Source: Lithium-ion battery with 4 hours operating time
- Charging System: In camera via AC adapter
- Enclosure: Over moulded casing
- Safety Specs: EN61010-1
- Dimensions (H x L x W): 96mm x 96mm x 224mm
- Weight: 0.534 kg
Key Features
- 160 x 120 pixel resolution at 50Hz
- Wi-Fi enabled for image transfer and live video streaming
- 3.5 inch touchscreen with manual focus
- Temperature range from -20°C to 650°C
- 16x digital zoom and picture-in-picture mode
- Thermal fusion and multiple analysis options including 3 Hot/Cold spot markers, 3 Area and 2 line analysis
- Emissivity correction and measurement corrections for accurate readings
- 4GB Micro SD card video storage with MPEG-4 format
- USB Type-C interface for data and live video transfer
- Lightweight at 534g with over moulded casing for durability
Professional Installation Requirements
- No professional installation required. User manual provided for safe operation and maintenance.
Applications
- Electrical panels thermal analysis
- Motors and compressor lines inspection
- HVAC system diagnostics
- Plant and maintenance electrical inspections
- HVAC installation and maintenance
Standards & Compliance
- Complies with AS/NZS 61010-1 for safety requirements of electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Helps identify energy losses and inefficiencies in electrical and HVAC systems
- Supports preventative maintenance reducing waste and extending equipment life
- Enables early detection of faults to prevent environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Majortech warranty policy for details.
Available Now
The Majortech MTi15 Thermal Imager is available now for immediate purchase. Ideal for electrical, HVAC, and industrial maintenance professionals requiring accurate thermal analysis.
