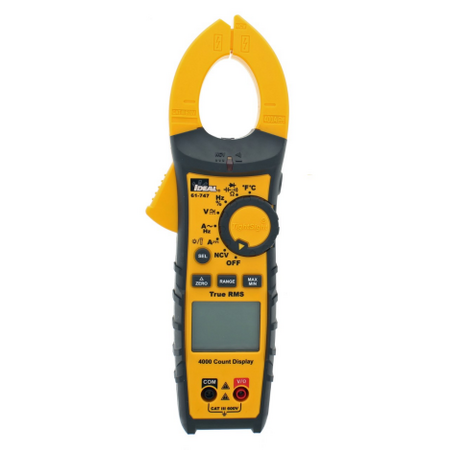

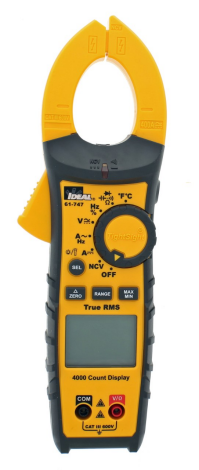

TightSight™ Clamp Meter 400A AC/DC | 600V Voltage Measurement | TRMS & Non-Contact Voltage Detection | Dual Backlit Display by Ideal Electrical
The TightSight™ Clamp Meter 400A AC/DC is designed for accurate electrical measurements, featuring a 600V voltage range, TRMS capability, and non-contact voltage detection. Ideal for electricians and technicians, it offers a dual backlit display for safer readings and a built-in flashlight for low-light conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TightSight™ Clamp Meter 400A AC/DC
Brand: Ideal Electrical
SKU: IDL61-747
Alternatively Known As: TRMS Clamp Meter, Digital Clamp Meter, AC/DC Clamp Meter, Electrical Clamp Meter, TightSight Clamp Meter
Technical Specifications
- AC Current Measurement: 0-400 Amps
- Voltage Measurement: 0-600V AC/DC
- Frequency Measurement
- Resistance, Continuity, Capacitance, Diode Testing
- Temperature Measurement with K-Type Thermocouple (°F/°C)
- Non-contact Voltage Sensor: 40V to 600V detection
- Dual backlit LCD displays including patented TightSight® bottom display
- Built-in flashlight
- Battery: 3 x 1.5V AAA
- Drop Protection: 2 meters
- CAT Rating: CAT IV 600 V / CAT III 1000 V
- Auto Ranging, Data Hold, Min/Max, Relative, Zero, Auto Power Off
- Dimensions (H x L x W): 180mm x 40mm x 70mm
- Weight: 0.3 kg
Key Features
- CAT III 600 V rated, auto-ranging TRMS digital clamp meter
- Measures up to 400 Amps AC/DC current through clamp head
- Measures up to 600V AC/DC voltage, frequency, resistance, continuity, capacitance, diodes
- Temperature measurement with included K-Type thermocouple

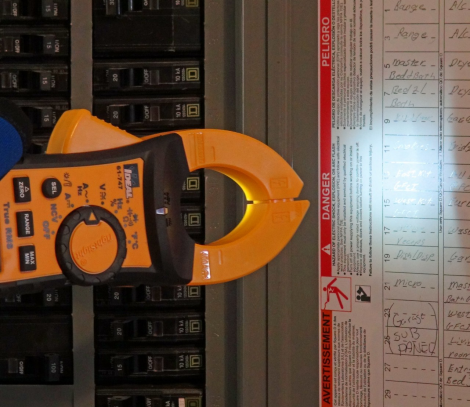

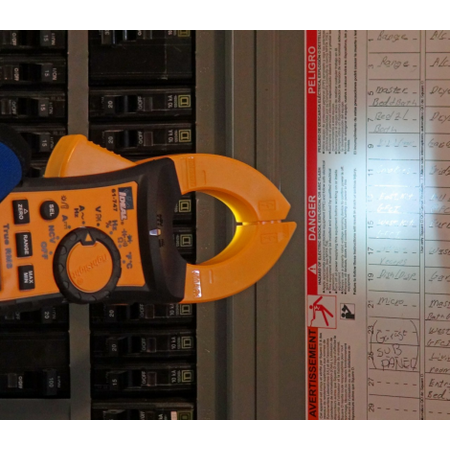

- Patented TightSight® dual backlit display at bottom and main display for safer readings
- Built-in flashlight for low-light conditions
- Non-contact voltage sensor detects 40V to 600V with LED and audible alerts
- Built-in probe tip holder and hanging strap clip for safer, easier one-hand operation
- Industrial-grade over-molding with 2 m drop protection
- Functions include HOLD, MIN/MAX, Relative, Zero, Range, Auto Power Off
Professional Installation Requirements
- Professional use recommended; installation and measurements should be performed by qualified electricians to ensure safety and compliance with electrical standards.
Applications
- Electrical measurements in residential, commercial, and industrial settings
- AC/DC current measurement up to 400 Amps
- Voltage, frequency, resistance, continuity, capacitance, diode testing
- Temperature measurement with K-Type thermocouple
- Non-contact voltage detection for safety checks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Auto power off feature conserves battery life reducing waste
- Durable industrial design reduces replacement frequency
- Accurate measurements help optimize electrical system efficiency
Warranty Information
Limited 2 Year warranty against manufacturing defects.
Available Now
The Ideal Electrical TightSight™ Clamp Meter 400A AC/DC is available for immediate purchase, ideal for electricians and technicians requiring safe and accurate electrical measurements.
