Tough Panelboard 36 Way | 250A Rated | IP66 & IK10 | Orange by NHP
Tough panelboard with 250A rated current and 36 outgoing ways—ideal for industrial and large residential electrical distribution. Built for durability with IP66 protection and IK10 impact strength, featuring a surface-mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

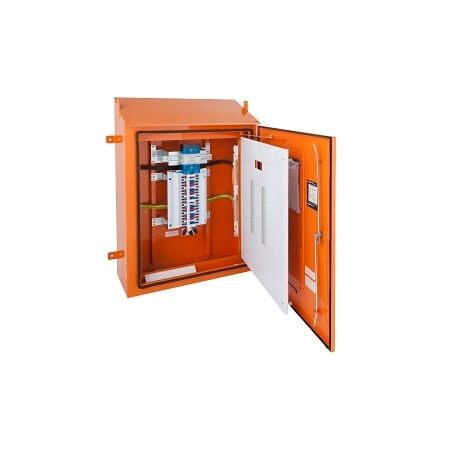

Product Name/Title: NHP Concept Tough Panelboard Size 2 1000mm DINT 36 Way Orange
Brand: NHP
SKU: CTD36O
Alternatively Known As: Tough Panelboard, Distribution Board, Electrical Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 36
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 165 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Material Thickness: 2 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 2 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1000mm x 324mm x 800mm
- Weight: 50 kg
Key Features
- 250 A rated current for high capacity electrical distribution.
- IP66 rated for protection against dust and water ingress.
- IK10 impact strength for durability in harsh environments.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, manufacturing plants
- Residential: Large homes requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Tough Panelboard Size 2 1000mm DINT 36 Way Orange is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
