Tough Panelboard 48 Way | 250A | IP66 Rated | Surface Mounted by NHP

BRAND: NHP
SKU: CTD48O
$10,688.50 List price: $14,192.90
Free pick up (over 25 kg)
For delivery quote message
Tough panelboard with 48 outgoing ways and 250A rated current—ideal for industrial and commercial facilities. Built for durability with IP66 protection and surface-mounted design for easy installation.

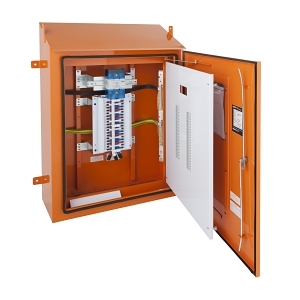

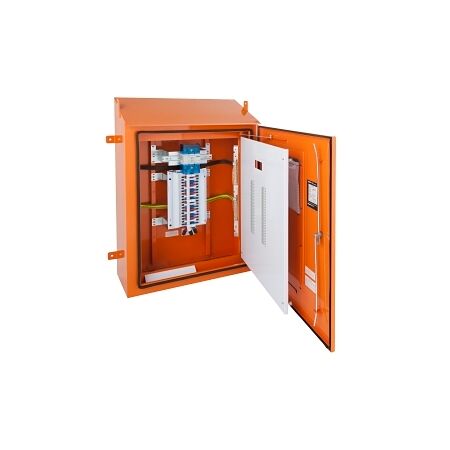

Product Name/Title: NHP Concept Tough Panelboard Size 2 1000mm DINT 48 Way Orange

Brand: NHP

SKU: CTD48O

Alternatively Known As: NHP Tough Panelboard, Industrial Panelboard, Electrical Distribution Board

Technical Specifications
  • Rated Current: 250 A
  • Number of Outgoing Ways: 48
  • Max Rated Operation Voltage: 415 V
  • Rated Impulse Withstand Voltage: 6 kV
  • Rated Insulation Voltage: 500 V
  • Neutral Terminal Block: Yes
  • Neutral Bar Rated Current: 165 A
  • Earthing Terminal Block: Yes
  • Spare DIN Equipment Space Poles: 18
  • Material Housing: Steel
  • Material Thickness: 2 mm
  • Degree of Protection: IP66
  • Type of Cover: Door
  • Material Thickness Cover: 2 mm
  • With Lock: Yes
  • Mounting Method: Surface mounted (plaster)
  • Dimensions (H x L x W): 1000mm x 324mm x 800mm
  • Weight: 50 kg
Key Features
  • IP66 rated for dust and water protection.
  • IK10 impact strength for high durability.
  • Surface mounted design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
  • Commercial: Industrial facilities, manufacturing plants
  • General: Any location requiring robust electrical distribution solutions
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Tough Panelboard Size 2 1000mm DINT 48 Way Orange is available now for immediate purchase. Ideal for commercial and industrial applications.

Non-Returnable & Non-Cancellable

CTD48O-AU-Concept-Tough-Panelboard-Datasheet.pdf (CTD48O-AU-Concept-Tough-Panelboard-Datasheet.pdf, 719 Kb) [Download]
