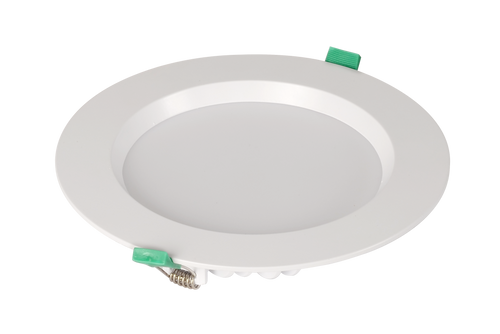

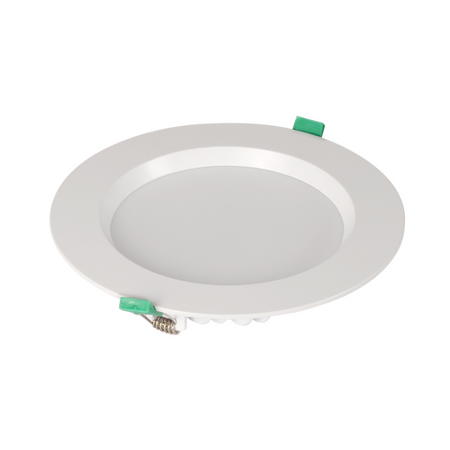

Tricolour Downlight 20/40W | 200mm | IP44 | Die-Cast Aluminium by Lawell Lightning
Tricolour downlight with 20/40W switchable output and IP44 rating—ideal for commercial and large indoor spaces. Built for durability with die-cast aluminium construction and easy installation with included flex and plug.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20/40W Tricolour Downlight (200mm)
Brand: Lawell Lightning
SKU: AL8SNTC40W
Alternatively Known As: ['Commercial LED Downlight', 'Switchable Wattage Downlight', 'Tri-colour Downlight', 'Lawell Super Nova Downlight', '40W Commercial Downlight', '20W Commercial Downlight']
Technical Specifications
- Input Voltage: 240V
- Lumen Output: 2000lm (20W) / 4000lm (40W)
- IP Rating: IP44
- Beam Angle: 100˚
- Driver: External constant current driver
- Cutout Size: 170-205mm (recommended 180mm)
- Colour Temperature: Tri-colour selectable (3000K/4000K/5700K)
- Wattage: 20W/40W switchable
- Dimming: Non-dimmable
- Flex and Plug: 1.2m included
- Body Material: Powder coated die-cast aluminium
- Tested: 8-hour burn-in before shipment
- Mean Time Between Failures: 50,000 hours

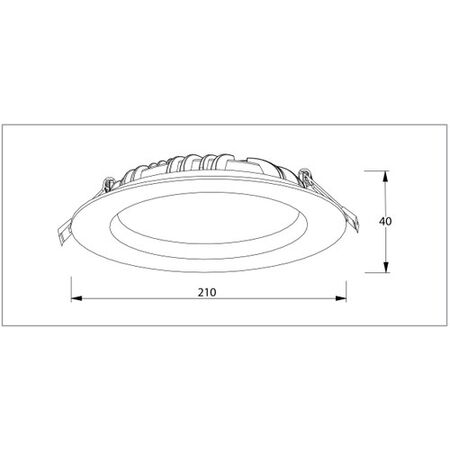

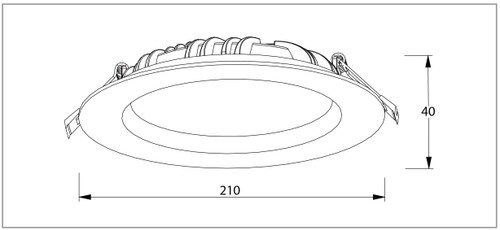

- Dimensions (H x L x W): 80mm x 220mm x 220mm
- Weight: 0.33 kg
Key Features
- 20W/40W switchable power output
- Die-cast aluminium construction for durability
- High efficiency SMD LED chips
- Constant current external driver
- Non-dimmable operation
- 1.2m flex and plug included for easy installation
- Tri-colour selectable: 3000K, 4000K, 5700K
- Internal/external IP44 rating for moisture resistance
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian standards and optimal performance.
Applications
- Commercial offices
- Retail spaces
- Educational facilities
- Healthcare environments
- Corridors and public areas
- General indoor lighting for large spaces
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long lifespan of 50,000 hours minimizes waste and replacement frequency
- Lower heat output compared to traditional lighting
Warranty Information
Comprehensive 3-year replacement warranty.
Available Now
Available for immediate purchase. Ideal for commercial and large indoor spaces requiring efficient, robust, and versatile downlighting.
