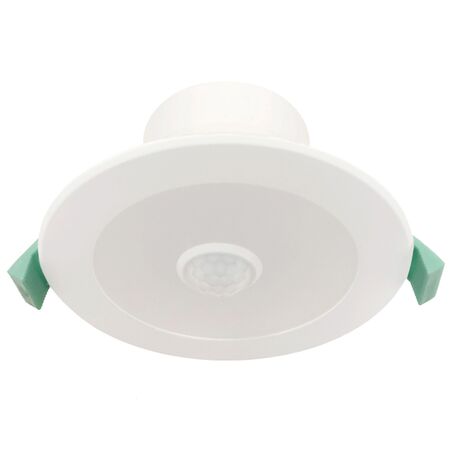

Tricolour LED Downlight with PIR Sensor | 9W | 90mm Cutout

BRAND: Martec

SKU: TLZD3459WDS

$28.90 List price: $38.50

+ −

30 Days Return Delivery Options

Tricolour LED downlight with 9W power and PIR motion sensor—ideal for residential and retro-fit applications. Built for versatility, with switchable color temperatures and IP44 protection.

Description

Product Name/Title: Tricolour LED Downlight with PIR Sensor | 9W | 90mm Cutout

SKU: TLZD3459WDS

Alternatively Known As: LED Downlight with Motion Sensor, PIR LED Downlight, 9W LED Ceiling Light, Tricolour LED Ceiling Downlight

Technical Specifications

Power: 9W
Voltage: 200-240V ~ 50Hz
Material: Aluminium housing with polycarbonate diffuser
Cut Out Size: >90mm
Colour Temperature: 3000K, 4000K, 5000K
Lumen Output: 780lm, 850lm, 820lm
IP Rating: IP44 (front only)
Beam Angle: 100º
CRI: Ra>80
Approximate Lamp Life: 35,000 hours @ Ta25ºC
Dimmable: No
Sensor Range: Up to 4m at 360º detection range
Dimensions (H x L x W): 50mm x 90mm x 90mm
Weight: 0.3 kg

Key Features

9W fixed LED downlight with white powder coated finish
Switchable colour temperature: 3000K, 4000K, 5000K
Built-in 360° PIR sensor with up to 4 metre detection range
IP44 ingress protection (front only)
IC-4 or IC-F covered and abutted with insulation
Supplied with 600mm flex and 2 pin plug

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sensor functionality.

Applications

Residential: Homes, apartments
Retro-fit lighting applications

Standards & Compliance

AS/NZS 60598 – Luminaires safety and performance
AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Energy-efficient LED technology reduces power consumption.
Long lamp life of approximately 35,000 hours reduces waste.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Tricolour LED Downlight with PIR Sensor is available now for immediate purchase. Ideal for residential and retrofit lighting applications.
