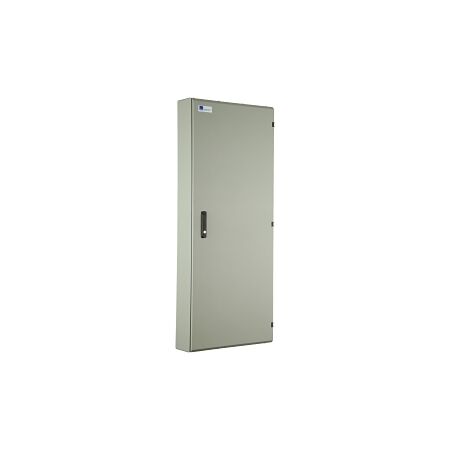

Triple Metered Panelboard 24/48/12 Way | 250A | Surface Mounted | Grey by NHP
Triple metered panelboard with 24/48/12 way configuration and 250A capacity—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with surface mounted steel housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 24/48/12 Way 250A MSW 8-1728mm Grey
Brand: NHP
SKU: CPLMT244812M250G
Alternatively Known As: NHP Triple Metered Panelboard, Concept Plus Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1728mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Triple metered panelboard with integrated energy metering function.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring robust electrical distribution and metering
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient energy metering helps in monitoring and reducing energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
