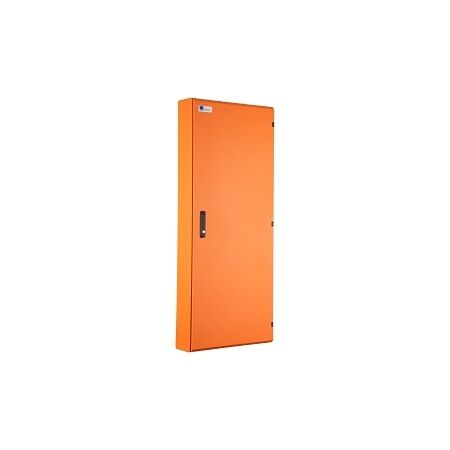

NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Orange

Triple Metered Panelboard 36/48/12 Way | 250A | Surface Mounted | Orange by NHP

BRAND: NHP

SKU: CPLMT364812M250O

$11,160.10 List price: $14,819.10

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Triple metered panelboard with 250A capacity and integrated energy metering—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with a durable steel housing and surface-mounted design.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Orange

Brand: NHP

SKU: CPLMT364812M250O

Alternatively Known As: Triple Metered Panelboard, Electrical Distribution Board, NHP Panelboard

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 96
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 4 kV
Rated Insulation Voltage: 500 V
Number of Poles Main Switch: 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Integrated Energy Metering Function: Yes
Spare DIN Equipment Space Poles: 21
Material Housing: Steel
Material Thickness: 1.6 mm
Degree of Protection: IP42
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 1944mm x 200mm x 600mm
Weight: 50 kg

Key Features

Triple metered panelboard with integrated energy metering function.
Surface mounted design with a durable steel housing.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, large buildings, and infrastructure projects
General: Any application requiring a robust electrical distribution solution

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Efficient energy metering helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.

CPLMT364812M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf (CPLMT364812M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf, 212 Kb) [Download]
