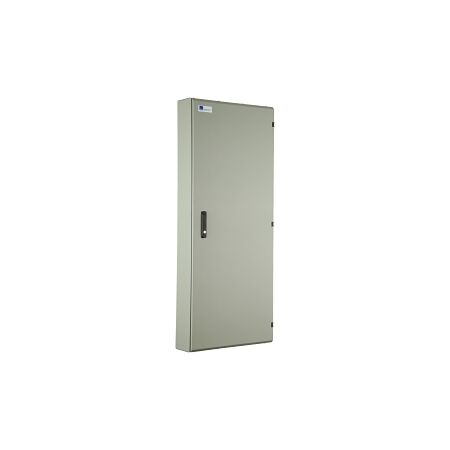

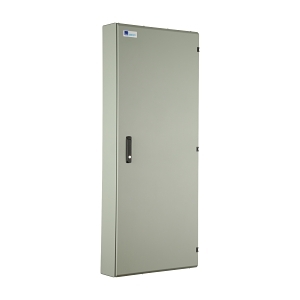

Triple Metered Panelboard 36/48/12 Way | 250A | Surface Mounted | Steel Housing by NHP
Triple metered panelboard with 250A rated current and 36/48/12 way configuration—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with surface mounted design and durable steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Grey
Brand: NHP
SKU: CPLMT364812M250G
Alternatively Known As: NHP Triple Metered Panelboard, NHP Concept Plus Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 96
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1944mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Triple metered panelboard with integrated energy metering function.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient energy management through integrated metering reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A is available now for immediate purchase, ideal for commercial and industrial applications.
