Home/Electrical/Switchboards/Distribution Boards/Triple Metered Panelboard 36/60/12 Way | 250A | Surface Mounted | Grey by NHP

Trade Discount 25%

NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/60/12 Way 250A MSW 9-1944mm Grey

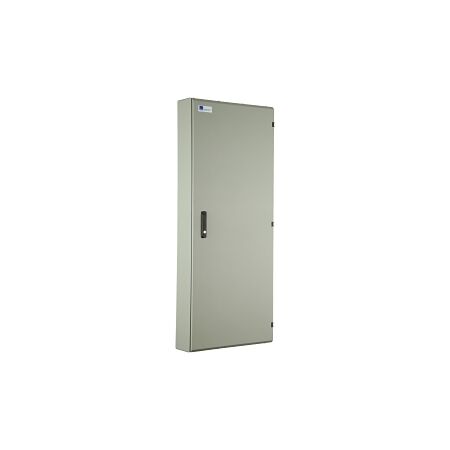

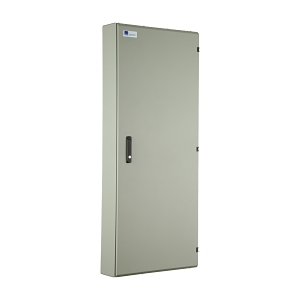

Triple Metered Panelboard 36/60/12 Way | 250A | Surface Mounted | Grey by NHP

BRAND: NHP

SKU: CPLMT366012M250G

$10,674.40 List price: $14,174.20

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Triple metered panelboard with 36/60/12 way configuration and 250A rated current—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with surface mounted design and durable steel housing.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/60/12 Way 250A MSW 9-1944mm Grey

Brand: NHP

SKU: CPLMT366012M250G

Alternatively Known As: NHP Triple Metered Panelboard, NHP Concept Plus Distribution Board

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 108
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 4 kV
Rated Insulation Voltage: 500 V
Number of Poles Main Switch: 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Impact Strength: IK10
Degree of Protection: IP42
Material: Steel, 1.6 mm thickness
Dimensions (H x L x W): 1944mm x 200mm x 600mm
Weight: 50 kg

Key Features

Triple metered panelboard with integrated energy metering function.
Surface mounted design with a durable steel housing.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, large buildings, and infrastructure projects
General: Any application requiring robust electrical distribution

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Efficient energy metering helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.

CPLMT366012M250G-AU-Triple-Metered-Panelboard---Grey-Datasheet.pdf (CPLMT366012M250G-AU-Triple-Metered-Panelboard---Grey-Datasheet.pdf, 204 Kb) [Download]
