Universal Lockout Device for Fuse Holders | Fits 20Amp to 400Amp | Durable Nylon & Zinc-Plated | 8mm Padlock Hole by Cirlock
Ensure electrical safety with the UFL-2 universal lockout device, designed to fit fuse holders from 20Amp to 400Amp. Made from durable nylon plastic with a zinc-plated metal set screw, it features an 8mm padlock hole for secure locking—ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

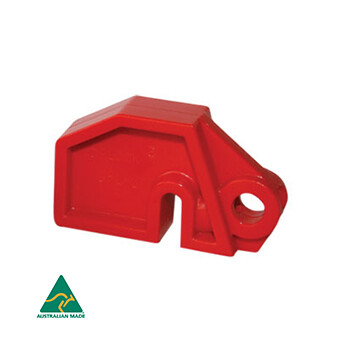

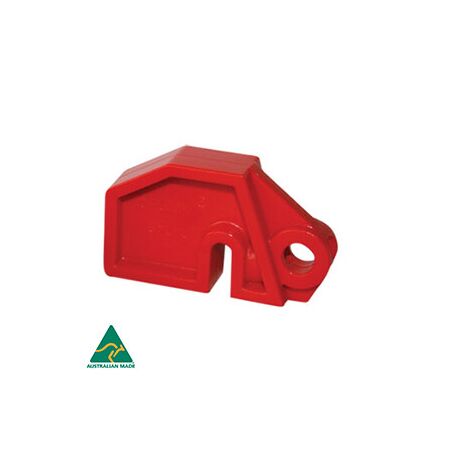

Product Name/Title: Universal Lockout Device for Fuse Holders | Fits 20Amp to 400Amp | Durable Nylon & Zinc-Plated | 8mm Padlock Hole by Cirlock
Brand: Cirlock
SKU: UFL-2
Alternatively Known As: Fuse Holder Lockout Device, Universal Fuse Lockout, Electrical Fuse Lockout Clamp
Technical Specifications
- Material: Nylon Plastic with Zinc-Plated Metal Set Screw
- Padlock Hole Diameter: 8mm
- Maximum Clamp Wall Thickness: 5mm
- Fits Fuse Holders: 20Amp to 400Amp
- Dimensions: 60mm x 35mm x 15mm
- Dimensions (H x L x W): 35mm x 15mm x 60mm
- Weight: 0.05 kg
Key Features
- Universal design fits most fuse holders from 20Amp to 400Amp.
- Constructed from durable nylon plastic with zinc-plated metal set screw.
- Includes padlock hole sized 8mm for secure locking.
- Clamp can accommodate fuse holder wall thickness up to 5mm.
Professional Installation Requirements
- Installation is straightforward; however, it is recommended that a qualified electrician or trained personnel perform lockout procedures to ensure compliance with safety standards.
Applications
- Lockout of fuse holders ranging from 20Amp to 400Amp to prevent unintended energisation.
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Promotes safety by preventing accidental electrical energisation, reducing risk of electrical accidents and associated environmental hazards.
Warranty Information
Standard manufacturer warranty applies; please refer to Cirlock for specific terms.
Available Now
The Cirlock UFL-2 Universal Lockout Device for Fuse Holders is available now for immediate purchase. Ideal for industrial and commercial electrical safety lockout applications.
