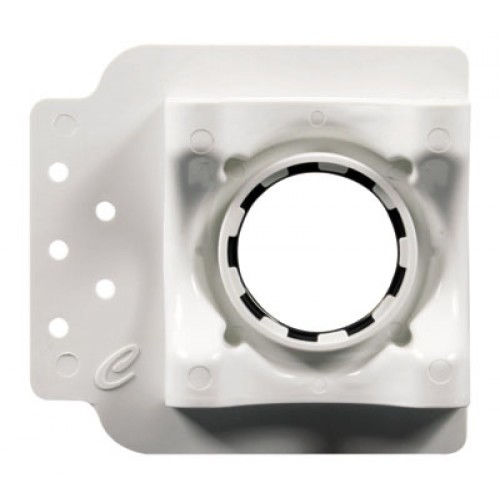

Universal Mounting Back Plate to Suit iStyle Valves Valet

BRAND: Ness
SKU: VAC-066
$5.60 List price: $7.50
+ −
30 Days Return Electricians Unlock Trade Access
Valet universal mounting back plate to Suit iStyle inlet valves. Ideal for central vacuum inlet valve installations.

Alternatively Known As: Valet iStyle Valve Back Plate, Central Vacuum Inlet Valve Mounting Plate, VAC-066 Universal Back Plate

Technical Specifications
  • Product Code: VAC-066
  • Compatibility: Valet iStyle designer-series inlet valves
  • Application: Wall-mounted central vacuum inlet valve installation
  • Ducting Compatibility: Designed for Valet central vacuum systems using approximately 50 mm ducting
  • Installation Method: Secures to wall framing or a suitable mounting surface with screws or nails
  • Seal Type: Valve gasket provides the connection seal; adhesive is not required at the valve-to-plate interface
  • Dimensions (H x L x W): 100mm x 100mm x 15mm
  • Weight: 0.1 kg
Key Features
  • Universal mounting plate for Valet iStyle inlet valves
  • Supports accurate positioning of the inlet valve during wall installation
  • Suitable for new-build and existing central vacuum installations
  • Designed for use with Valet central vacuum ducting and low-voltage inlet wiring
  • Allows the iStyle valve to be fitted after wall finishing is complete
Applications
  • Installing Valet iStyle central vacuum inlet valves
  • New residential central vacuum system installations
  • Retrofit and replacement inlet valve installations
  • Wall or floor-mounted central vacuum inlet locations
Environmental Benefits
  • Durable mounting component that can support a longer service life for the inlet valve installation
  • Reusable accessory that can be retained when an iStyle inlet valve is replaced
  • Supports airtight central vacuum installation, helping maintain system airflow efficiency
Warranty Information

One-year parts warranty applies to Valet central vacuum parts and accessories, subject to the manufacturer's warranty terms and correct installation.

Available Now

Available through Valet and authorised Australian central vacuum distributors.
