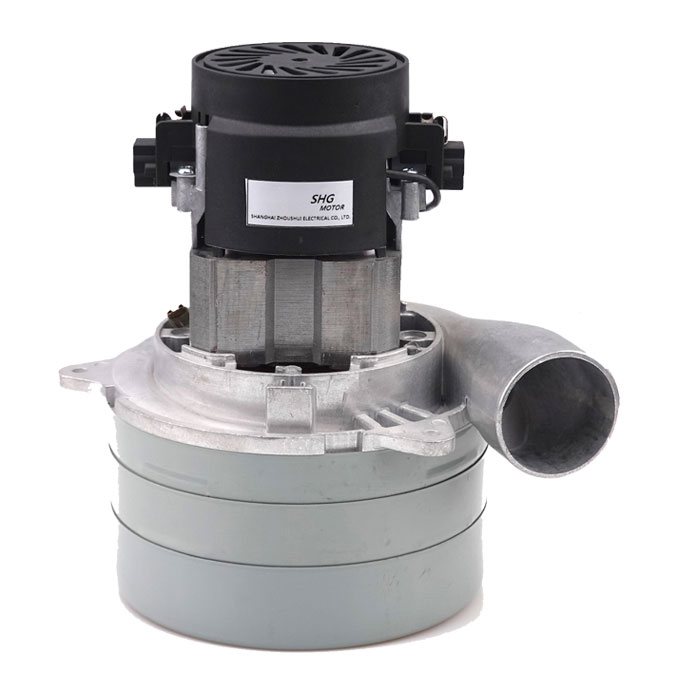

Vacuum Motor to Suit Early VBS and 3-Stage V1S Valet

BRAND: Ness
SKU: VAC-203B
$238.90 List price: $318.50
+ −
30 Days Return Electricians Unlock Trade Access
Valet vacuum motor to Suit early VBS and 3-stage V1S units. Ideal for central vacuum power unit repairs.

Alternatively Known As: Ametek Lamb 117123 Vacuum Motor, 3-Stage Central Vacuum Motor, Tangential Bypass Vacuum Motor

Technical Specifications
  • Compatible Power Units: Early Valet VBS and 3-stage V1S
  • Replacement Reference: Ametek Lamb 117123-00; replaces Valet VAC-203
  • Voltage: 240 V AC
  • Power: 1,550 W
  • Fan Stages: 3
  • Motor Type: Series universal
  • Fan System: Tangential bypass
  • Airflow: Approximately 95.1 CFM
  • Maximum Air Watts: Approximately 448 W
  • Water Lift: Approximately 137.1 in
  • Frequency: 50/60 Hz
  • Motor Bearings: Ball bearings
  • Electrical Connection: Terminals
  • Motor Duty: Intermittent
  • Replacement Seal: Check existing motor seal or gasket before installation
  • Dimensions (H x L x W): 204mm x 144mm x 144mm
  • Weight: 3.33 kg
Key Features
  • Direct replacement for early Valet VBS and 3-stage V1S power units
  • Genuine Ametek Lamb 117123 motor specification
  • Three-stage tangential bypass design separates working air from motor cooling air
  • 240 V AC operation suitable for Australian central vacuum systems
  • Ball-bearing construction for smooth motor operation
  • Designed for central vacuum power unit repair and refurbishment
  • Replacement motor must be correctly matched and wired to the power unit
Professional Installation Requirements
  • Installation must be performed by a qualified electrician. Incorrect wiring, incorrect fitting or installation of the wrong motor may void the warranty. Check and replace the motor seal or gasket where required, and do not overtighten mounting bolts.
Applications
  • Repair of early Valet VBS central vacuum power units
  • Repair of Valet 3-stage V1S central vacuum power units
  • Replacement of worn or failed central vacuum motors
  • Domestic central vacuum system refurbishment
Standards & Compliance
  • AS/NZS 60335.2.69:2017 is the relevant safety standard for centrally-sited vacuum cleaners; compliance applies to the completed vacuum appliance or system, and separate certification for this replacement motor is not stated.
Environmental Benefits
  • Extends the service life of an existing central vacuum power unit, reducing replacement equipment and electronic waste
  • Restores the power unit's designed airflow and suction performance, supporting efficient system operation
  • Repairing the existing system avoids disposal of the complete vacuum power unit
Warranty Information

12-month warranty from date of purchase for replacement vacuum motors. Warranty may be affected by incorrect wiring, incorrect fitting, use of the wrong motor, overtightened mounting bolts or unauthorised servicing.

Available Now

Available through Valet's Australian online store and authorised Australian distributors, subject to current stock availability.
