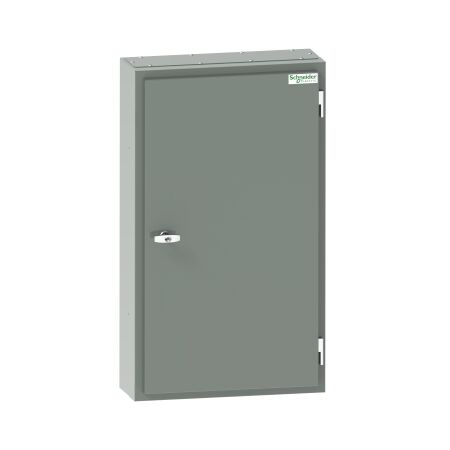

Weatherproof Distribution Board 36 Poles | 160A Main Switch | IP56 Grey by Clipsal
Weatherproof distribution board with 36 poles and 160A main switch—ideal for industrial facilities and large buildings. Built for robust electrical distribution, with IP56 protection and steel enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MD Isobar standard distribution board, 36 poles, 160A main switch, 18mm, IP56, grey
Brand: Clipsal
SKU: MD236DM1
Alternatively Known As: Acti9 Distribution Board, Clipsal Isobar DB, Weatherproof Distribution Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure type: Weatherproof enclosure
- Enclosure material: Steel
- Network frequency: 50 Hz
- Poles description: 3P + N
- Dimensions (H x L x W): 1000mm x 225mm x 580mm
- Weight: 52 kg
Key Features
- IP56 rated for weatherproof protection.
- 160A main switch with 36 poles for extensive circuit management.
- Includes earth/neutral terminal block and removable gland plates.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings requiring robust electrical distribution.
- General: Any application needing a reliable and weatherproof distribution board.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MD Isobar Standard Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable electrical distribution.
