D7 Legend Plate 30x40mm Snap-In Reverse Text Black NHP

BRAND: Sprecher + Schuh
SKU: D717BE188
$7.90 List price: $9.80
+ −
30 Days Return Electricians Unlock Trade Access

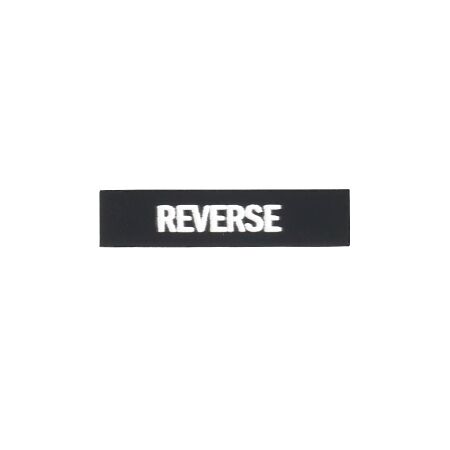

Designed for 22.5mm operator control devices, this D7 legend plate features snap-in installation for easy replacement. The black plate has a reverse imprint reading "Reverse" and dimensions of 9mm x 40mm x 30mm. It is suited to industrial control panels, machinery and commercial electrical control systems, with AS/NZS 3000 compliance shown on the product page. See the product specifications and application details below for further information.
Technical Specifications
  • SKU: D717BE188
  • Colour: Black
  • Meaning of the imprint: Reverse
  • Width: 29.8 mm
  • Height: 8.8 mm
  • Dimensions (H x L x W): 9mm x 40mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Designed for 22.5mm operator control devices.
  • Snap-in installation for easy replacement.
Professional Installation Requirements
  • Installation by a qualified electrician is recommended for optimal performance.
Applications
  • Industrial: Control panels and machinery
  • Commercial: Electrical control systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Legend Plate 30 x 40mm Snap-In White Text REVERSE OFF LOWER is available now for immediate purchase. Ideal for industrial and commercial electrical control systems.

Non-Returnable & Non-Cancellable


FAQ

Q: What are the dimensions of the D7 Legend Plate?
A: The dimensions are 9mm x 40mm x 30mm.

Q: What is the D7 Legend Plate designed for?
A: It is designed for 22.5mm operator control devices and is suitable for industrial control panels, machinery and commercial electrical control systems.


Pair the D7 legend plate with a control legend plate for clear identification within control installations.
For emergency control applications, an e-stop legend plate can provide clear panel identification.
A D7 legend plate can be used alongside a D7 legend plate with alternative reverse text for control panel identification.

Review the switch amp rating guide when working with switching components in electrical control installations.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.

D717BE188-AU-Legend-Plate-for-22.5mm-Operator-Control-Devices-Datasheet.pdf (D717BE188-AU-Legend-Plate-for-22.5mm-Operator-Control-Devices-Datasheet.pdf, 169 Kb) [Download]
