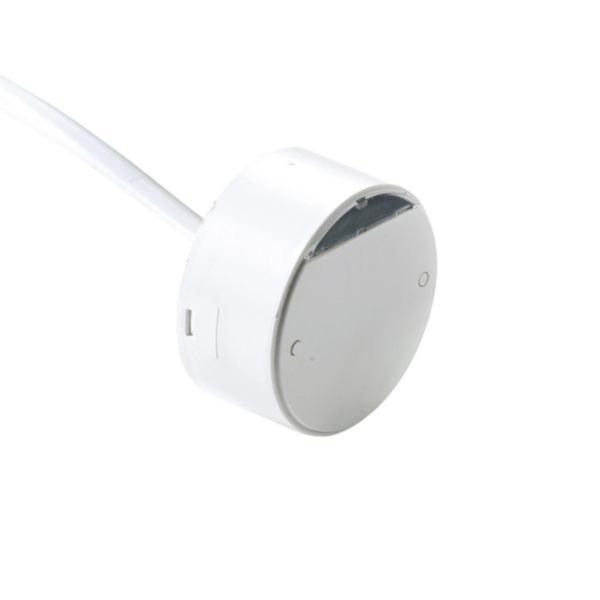

DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | 360° Detection | 300mm Lead | @EA of 1 | by CP Electronics
The DALI/DSI Digital Dimming Microwave Presence Detector is designed for efficient lighting control in commercial and industrial settings. With a 360° detection angle and an IP40 rating, it seamlessly integrates into luminaires, ensuring optimal energy management. Ideal for large spaces, this miniature sensor features a 300mm lead and supports both switching and dimming functionalities, making it perfect for enhancing energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DALI/DSI Digital Dimming Microwave Presence Detector | IP40 Rated | 360° Detection | 300mm Lead | @EA of 1 | by CP Electronics
Brand: CP Electronics
SKU: MWS5-DD-L03
Alternatively Known As: Microwave Presence Detector Head, DALI Dimming Presence Sensor, Miniature Microwave Occupancy Sensor, Luminaire Integrated Presence Detector
Technical Specifications
- Detection technology: High frequency microwave sensor
- Voltage: 230V AC, 50Hz
- Max switching power: 1500W
- Detection angle: 360° horizontal
- Max reach: 4m sideways, 4m frontally, 8m diameter on floor
- Standby consumption: 3.8mA
- IP rating: IP40
- Operating temperature: -10 to 80°C
- Relay rating: 6A (standard power supply)
- Connection cable length: 300mm lead
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Response value luminosity adjustable: 0-2000 lux
- Number of switching zones: 1
- Dimensions (H x L x W): 39mm x 19mm x 39mm
- Weight: 0.1 kg
Key Features
- Miniature microwave presence detector for luminaire integration
- Compatible with DALI/DSI digital dimming and analogue 1-10V dimming ballasts
- IP40 rated with microwave sensor penetrating plastic and glass
- Adjustable timeout period for absence detection
- Programmable via UHS5 or UNLCDHS handsets
- Supports switching and dimming with lux level lensing
- Maintained illuminance with daylight linking/harvesting
- Surface mounted with thermoplastic, halogen-free, matt white finish
- 360° horizontal detection angle with 8m diameter floor reach
- Operating temperature range -10 to 80°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- Lighting control in commercial and industrial buildings
- Large spaces with awkward shapes requiring presence detection
- Integration inside luminaires for automatic lighting control
- Areas requiring energy-efficient lighting management with dimming capabilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by automatically switching and dimming lighting based on occupancy
- Supports daylight harvesting to minimize artificial lighting use
- Helps lower carbon footprint through efficient lighting management
Warranty Information
Standard manufacturer warranty applies; typically 2 years against defects.
Available Now
The CP Electronics DALI/DSI Digital Dimming Miniature IP40 Microwave Presence/Absence Detector Head is available for immediate purchase, ideal for commercial and industrial lighting control applications.
