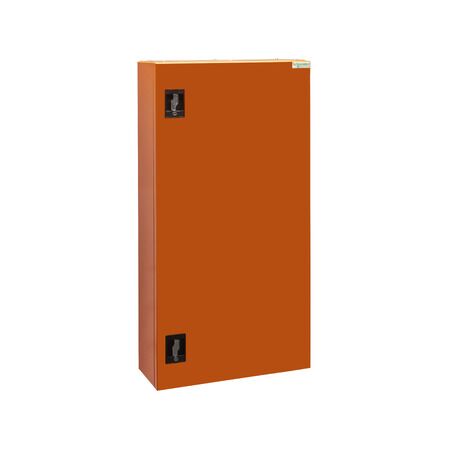

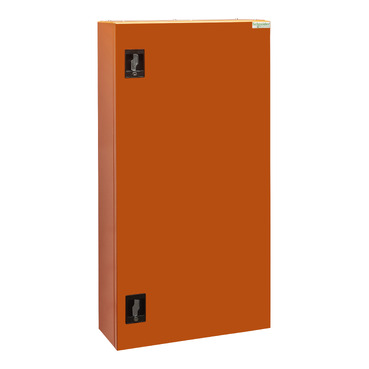

MB ISOBAR 72P C60 IP42 Rated 250A Capacity Clipsal

BRAND: Clipsal
SKU: SCHMB272EM2X15
$3,647.10 List price: $4,544.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The MB ISOBAR 72P C60 is designed for robust electrical distribution, featuring a 250A current rating and IP42 ingress protection.

Product Name/Title: MB ISOBAR 72P C60 | IP42 Rated | 250A Capacity | Orange Powder-Coated | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: SCHMB272EM2X15

Alternatively Known As: Clipsal Isobar Distribution Board, 72 Pole Switchboard, MB272EM2X15, 250A Main Switchboard, Orange Electrical Panel

Technical Specifications
  • Number of Poles: 72
  • Current Rating: 250A
  • Ingress Protection: IP42
  • Material: Steel, powder-coated orange
  • Compatible Breakers: C60 series
  • Door: Lockable, hinged
  • Mounting: Surface mount
  • Rated Voltage: 415V AC
  • Dimensions (H x L x W): 1200mm x 250mm x 800mm
  • Weight: 45 kg
Key Features
  • 72 pole capacity for extensive circuit distribution
  • IP42 rated for protection against solid objects and limited water ingress
  • 250A maximum current rating for high-capacity applications
  • Robust steel construction with orange powder-coated finish
  • Compatible with C60 circuit breakers
  • Lockable door for enhanced safety and security
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
  • Commercial buildings: electrical distribution and circuit protection
  • Industrial facilities: main switchboards and sub-distribution
  • Large residential complexes: centralized power management
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
  • Durable construction ensures long service life, reducing replacement frequency and waste.
  • Powder-coated finish is low-VOC and environmentally friendly.
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

Available for immediate purchase. Ideal for commercial and industrial electrical distribution applications.
