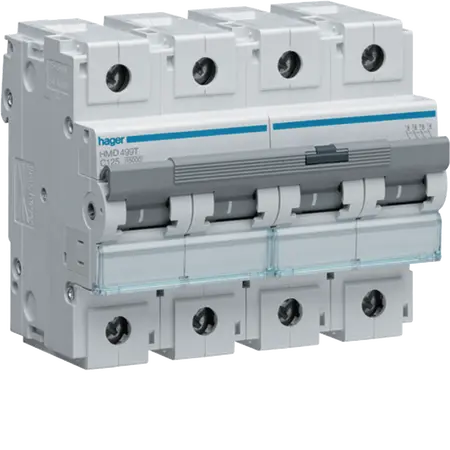

MCB 4P 15kA C-80A | 6M | Screw Terminal | 415V by Hager

BRAND: :hager
SKU: HMC480T
$861.60 List price: $1,101.70
+
MCB 4-pole with 15kA breaking capacity and 80A rated current—ideal for residential, commercial, and industrial applications. Built for secure installation with screw terminals, supporting AC voltage up to 415V.

Product Name/Title: MCB 4P 15kA C-80A 6M

Brand: Hager

SKU: HMC480T

Alternatively Known As: Miniature Circuit Breaker, MCB, Modular Circuit Protection Device

Technical Specifications
  • Rated operational voltage: 415V
  • Rated insulation voltage: 500V
  • Rated impulse withstand voltage: 6000V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 3.5 - 5.0 Nm
  • Electric current: Rated current 80A
  • Endurance: 4000 electric cycles, 20000 mechanical operations
  • Cross-section for massive conductors: 1 - 70 mm²
  • Cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 106mm
  • Weight: 0.5 kg
Key Features
  • 4-pole design for three-phase systems.
  • Rated current of 80A with a breaking capacity of 15kA.
  • Screw terminal connections for secure installation.
  • Designed for AC voltage supply up to 415V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • Industrial: Factories, manufacturing facilities
Standards & Compliance
  • Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 4P 15kA C-80A 6M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
