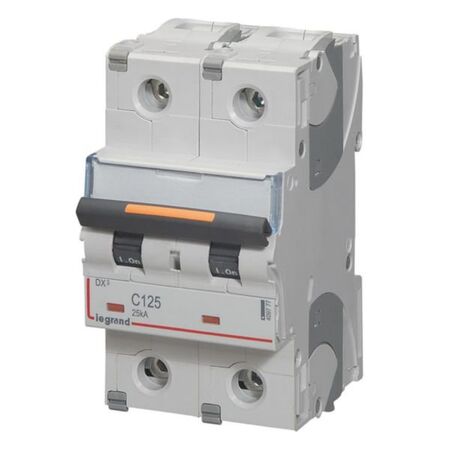

MCB DX3 2 Pole 125A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
The MCB DX3 2 Pole 125A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 25kA and IP20 protection, it ensures overcurrent and short-circuit protection for circuits up to 125A. Built for safety and compliance, this circuit breaker is ideal for qualified electricians looking to enhance electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 2 Pole 125A Curve C | 25kA Breaking Capacity | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409777
Alternatively Known As: Miniature Circuit Breaker 2P 125A C Curve, Legrand DX3 MCB 125 Amp, 2 Pole Circuit Breaker 125A
Technical Specifications
- Rated current: 125 A
- Number of poles: 2
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated short-circuit breaking capacity Icu: 25 kA at 400 V
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Pollution degree: 3
- Ambient operating temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Connection type: Screwed terminal, cable
- Mounting method: DIN rail
- Tripping characteristic: Curve C
- Width in modular spacings: 3
- Degree of impact strength: IK02
- Electric supply direction: Top or bottom
- Dimensions (H x L x W): 127.5mm x 79.2mm x 53.4mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 25kA according to IEC 60947-2
- Tripping threshold between 625A and 1250A (C curve)
- Protected against solid bodies larger than 12.5mm (IP20)
- Can be equipped with Legrand DX3 auxiliaries and accessories
- Compatible with aluminium cables using terminal accessory
- Red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Halogen free design
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Circuit protection in electrical installations
- Overcurrent and short-circuit protection for circuits up to 125A
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as per Legrand standard policy; typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCB DX3 2 Pole 125A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
