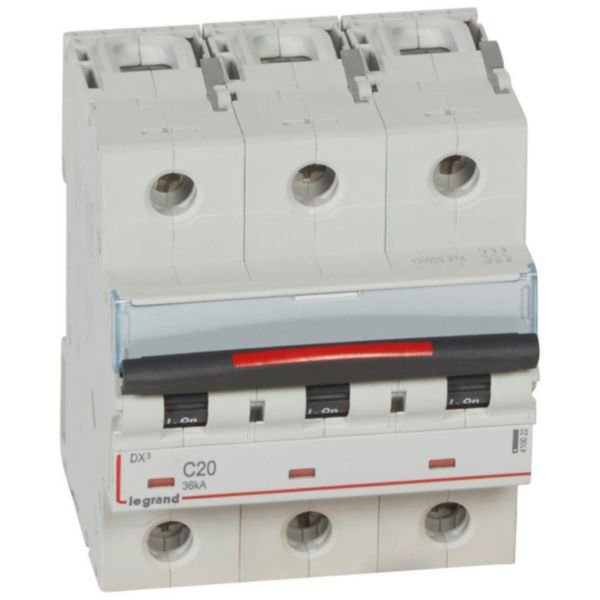

MCB DX3 3 Pole 20A Curve C 36kA Breaking Capacity IP20 Protection Legrand
The MCB DX3 3 Pole 20A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 20 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated short-circuit breaking capacity Icu: 36 kA at 400 V
- Frequency: 50-60 Hz
- Number of poles: 3
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section: 1.5-35 mm² multi-wired, 1.5-50 mm² solid-core
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Electric supply direction: Top or bottom
- Degree of impact strength: IK02
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: No
- Dimensions (H x L x W): 128mm x 79mm x 80mm
- Weight: 0.3 kg
Key Features
- Breaking capacity 36kA according to IEC 60947-2
- Tripping threshold between 100A and 200A (C curve)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Equipped with red/green mechanical indicator for contact status
- Label holder for clear circuit identification
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can be connected to aluminium cables with terminal accessory
Professional Installation Requirements
- Installation must be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and warranty validity.
Applications
- Residential and small commercial electrical panels
- Circuit protection in distribution boards
- Overcurrent protection for electrical circuits
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Installation and maintenance must be performed by qualified personnel to maintain warranty validity.
Available Now
The Legrand MCB DX3 3 Pole 20A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
