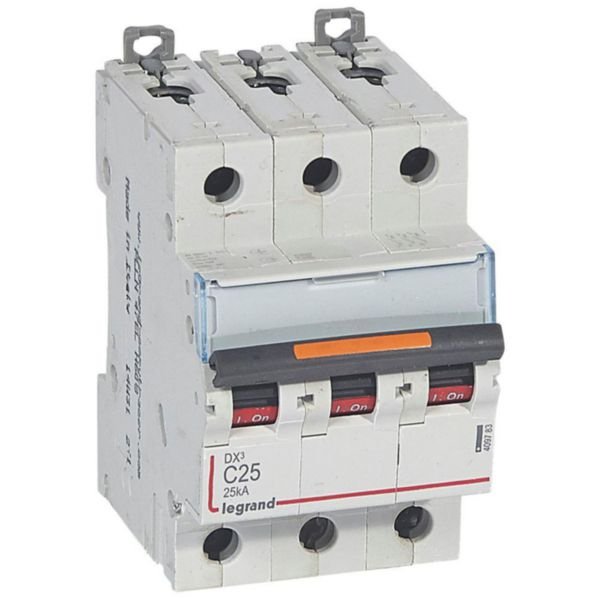

MCB DX3 3 Pole 25A Curve C | 25kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
The MCB DX3 3 Pole 25A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 25kA and IP20 protection, it safeguards circuits against overloads and short circuits. Ideal for professional installations, this circuit breaker ensures safety and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB DX3 3 Pole 25A Curve C | 25kA Breaking Capacity | IP20 Protection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 409783
Alternatively Known As: Miniature Circuit Breaker 3P 25A C Curve, Legrand DX3 MCB 3 Pole 25 Amp, 3 Pole Circuit Breaker 25A C Curve
Technical Specifications
- Rated current: 25 A
- Rated voltage: 400 V AC
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Rated short-circuit breaking capacity Icu: 25 kA at 400 V, 50 kA at 230 V
- Frequency: 50-60 Hz
- Number of poles: 3
- Release characteristic: Curve C
- Degree of protection: IP20
- Pollution degree: 3
- Connectable conductor cross section: multi-wired 1.5-25 mm², solid-core 1.5-35 mm²
- Mounting method: DIN rail
- Operating ambient temperature: -25 to 70 °C
- Storage temperature: -40 to 70 °C
- Degree of impact strength: IK02
- Electric supply direction: Top or bottom
- Connection type: Screwed terminal, busbar and cable
- Dimensions (H x L x W): 95mm x 78mm x 53mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 25kA according to IEC 60947-2
- Tripping threshold between 125A and 250A (C curve between 5 In and 10 In)
- Can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and accessories
- Can connect to aluminium cable with terminal accessory
- Equipped with two DIN rail clamps for easy installation and removal
- Label holder for clear circuit identification
- On and OFF indication on handle with red and green backgrounds
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with installation rules to ensure safety and maintain warranty.
Applications
- Residential and small commercial electrical panels
- Circuit protection in electrical distribution systems
- Protection of electrical circuits against overload and short circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen free materials used
- Complies with substance-restriction requirements
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Installation by qualified personnel recommended to maintain warranty validity.
Available Now
The Legrand MCB DX3 3 Pole 25A Curve C Miniature Circuit Breaker is available for immediate purchase, ideal for residential and small commercial electrical panel protection.
