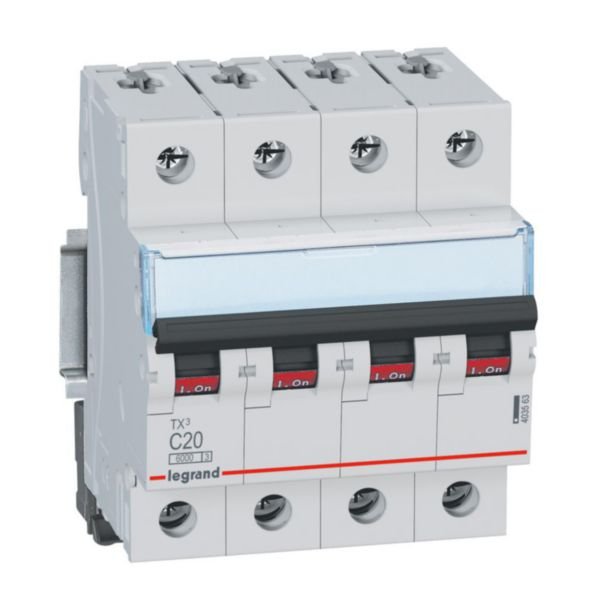

MCB TX3 6000A 4 Pole 20A Curve C | IP20 Rated | DIN Rail Mount | by Legrand
The MCB TX3 6000A 4 Pole 20A Curve C is a reliable miniature circuit breaker designed for residential and small commercial electrical panels. With a breaking capacity of 6000A and IP20 protection, it ensures safety and efficiency in circuit protection. Ideal for qualified electricians, this breaker is compatible with Legrand DX3 auxiliaries and features a clear on/off indication for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCB TX3 6000A 4 Pole 20A Curve C | IP20 Rated | DIN Rail Mount | by Legrand
Brand: Legrand
SKU: 403563
Alternatively Known As: Miniature Circuit Breaker, 4 Pole MCB, 20 Amp Circuit Breaker, Curve C MCB, Legrand TX3 MCB
Technical Specifications
- Breaking capacity: 6000A according to IEC 60898-1
- Tripping threshold: 100A to 200A (C curve between 5 In and 10 In)
- Rated current: 20 A
- Rated voltage: 400 V
- Rated insulation voltage Ui: 500 V
- Rated impulse withstand voltage Uimp: 4 kV
- Short-circuit breaking capacity Icn at 230 V: 10 kA
- Short-circuit breaking capacity Icn at 400 V: 6 kA
- Frequency: 50-60 Hz
- Current limiting class: 3
- Degree of protection: IP20
- Pollution degree: 2
- Mounting method: DIN rail
- Connection type: Screwed terminal, busbar and cable
- Colour: Grey (RAL 7035)
- Degree of impact strength: IK02
- Storage temperature: -40 to 70 °C
- Flush-mounted installation: Yes
- Concurrently switching neutral conductor: Yes
- Dimensions (H x L x W): 88mm x 78mm x 71mm
- Weight: 0.3 kg
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard
- Tripping threshold between 100A and 200A (C curve between 5 In and 10 In)
- Can be supplied by copper cable, prong busbar (top or bottom), or fork busbar (bottom)
- IP20 protection against solid bodies larger than 12.5mm (fingerproof)
- Energy limitation class 3 for let-through energy
- Compatible with Legrand DX3 auxiliaries and accessories
- Can connect to aluminium cable with specific terminal accessory
- Equipped with label holder for circuit identification
- On/Off indication on handle with red and green backgrounds
- Flush-mounted installation with DIN rail clamp
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Residential and small commercial electrical panels
- Protection of electrical circuits in homes and small businesses
- Use in distribution boards for circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Halogen-free materials reduce environmental impact
- Energy limitation class 3 reduces let-through energy, enhancing safety and reducing damage
Warranty Information
Warranty terms as provided by Legrand, typically covering manufacturing defects. Installation by qualified personnel recommended to maintain warranty validity.
