Miniature Circuit Breaker 125A | D Curve | 15kA Breaking Capacity | IP20 by Clipsal
Miniature circuit breaker with 125A rated current and D curve tripping—ideal for residential and small commercial spaces. Built for safety and reliability, with 15kA breaking capacity and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

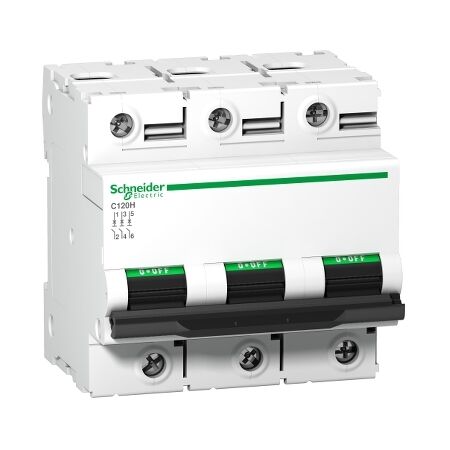

Product Name/Title: Acti9, Miniature circuit breaker (MCB), C120H, 3P, 125A, D curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)
Brand: Clipsal
SKU: A9N18514
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated operational voltage: <= 375 V DC, 380...415 V AC, 220...240 V AC
- Control type: toggle
- Mounting mode: clip-on
- Mechanical durability: 20000 cycles
- Electrical durability: 5000 cycles
- Connections: tunnel type terminals 1-50 mm² rigid, 1.5-35 mm² flexible
- Wire stripping length: 15 mm
- Ambient air temperature for operation: -30...60 °C
- Rated insulation voltage: 500 V AC
- Rated impulse withstand voltage: 6 kV
- Dimensions (H x L x W): 81mm x 73mm x 81mm
- Weight: 0.615 kg
Key Features
- 125A rated current at 30 °C
- D curve for thermal-magnetic tripping
- Breaking capacity of 15000A
- Suitable for isolation
- IP20 protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments
- Commercial: Small commercial spaces
Standards & Compliance
- Complies with EN/IEC 60947-2 and EN/IEC 60898-1 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Miniature Circuit Breaker (MCB) C120H 3P 125A D Curve is available now for immediate purchase. Ideal for residential and small commercial applications.
