Trade Discount 33%
Miniature Circuit Breaker 1P 63A | C Curve 6000A | IP20 Indoor by Clipsal
Miniature circuit breaker with 1P, 63A, and C Curve—ideal for residential and commercial distribution. Built for reliable circuit protection, with 6000A breaking capacity and IP20 rating for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

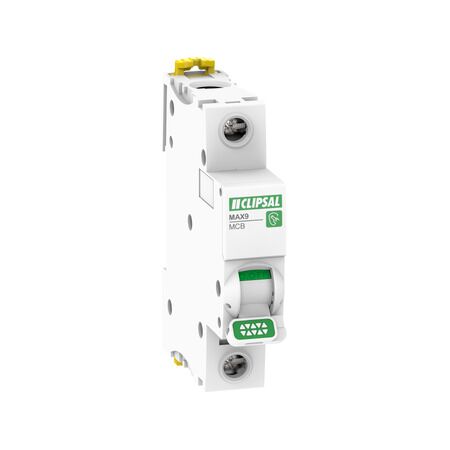

Product Name/Title: MAX9, Miniature Circuit-Breaker (MCB), 1P, 63A, C Curve, 6000A, 240/415V, Distribution
Brand: Clipsal
SKU: MX9MC163
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated current: 63A at 30°C
- Rated operational voltage: 240V AC 50/60Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles at 240V
- Connections: Tunnel type terminals for flexible and rigid wires
- Rated impulse withstand voltage: 4kV
- Rated insulation voltage: 500V
- Pollution degree: 2
- Overvoltage category: III
- Tropicalisation: Severity B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.125 kg
Key Features
- 1P, 63A, C Curve for reliable circuit protection.
- Breaking capacity of 6000A at 240V AC.
- Toggle control type with ON/OFF indication.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Distribution in residential and commercial electrical systems.
Standards & Compliance
- Conforming to AS/NZS 60898 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS and free of substances of very high concern.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Miniature Circuit-Breaker (MCB) is available now for immediate purchase. Ideal for distribution in residential and commercial electrical systems.
