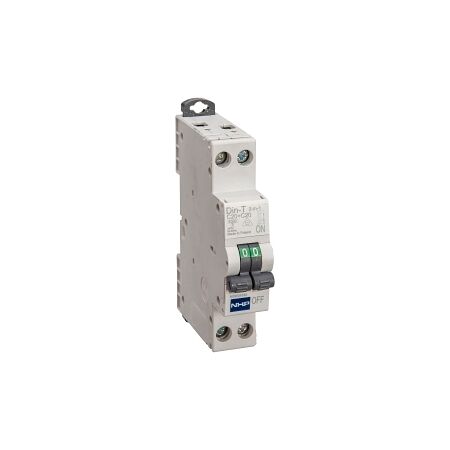

Miniature Circuit Breaker 2 IN 1 | 6kA 20A | 18mm Width | C Trip Curve by NHP
Miniature circuit breaker with 6kA breaking capacity and 20A rated current—ideal for residential and commercial circuit protection. Built for space-saving installation, with a compact 18mm width and C trip curve for general applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 20 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6kA breaking capacity for reliable protection.
- Compact 18mm width for space-saving installation.
- C trip curve suitable for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any application requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase, ideal for residential and commercial applications.
