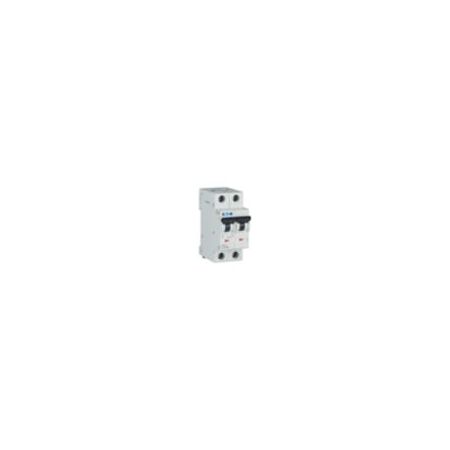

Miniature Circuit Breaker 2-Pole 10A | C Curve | 15 kA Breaking Capacity | IP20 Protection by Eaton
Miniature circuit breaker with 2 poles and a 10A rating—ideal for branch circuit protection in industrial and commercial settings. Built for safety and reliability, featuring a C curve tripping characteristic and IP20 protection for safe operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Miniature Circuit Breaker 2-Pole 10A | C Curve | 15 kA Breaking Capacity | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-278756
Alternatively Known As: Miniature Circuit Breaker 10A 2-Pole, FAZ MCB C Curve, Eaton FAZ-C10/2, Eaton xEffect FAZ MCB
Technical Specifications
- Type: FAZ Miniature circuit breaker
- Number of poles: 2
- Tripping characteristic: C curve
- Rated current (In): 10 A
- Voltage rating: 240 V AC / 415 V AC, 60 V DC per pole
- Rated switching capacity: 10 kA (IEC/EN 60898-1), 15 kA (IEC/EN 60947-2)
- Breaking capacity: 10 kA (UL1077)
- Operational frequency: 50-60 Hz
- Rated insulation voltage (Ui): 440 V
- Rated impulse withstand voltage (Uimp): 4 kV
- Mounting method: Top-hat rail IEC/EN 60715
- Terminal capacity: up to 25 mm² for control cable, 10 mm² for main cable
- Degree of protection: IP20 (IP40 when fitted)
- Electrical lifespan: 10,000 operations
- Ambient operating temperature: -25 °C to 75 °C
- Dimensions (H x L x W): 75.5mm x 80mm x 36mm
- Weight: 0.222 kg
Key Features
- 2-pole miniature circuit breaker with C tripping characteristic
- Rated current: 10 A
- Rated operational voltage: 240 V AC / 415 V AC
- Breaking capacity up to 15 kA (IEC/EN 60947-2)
- Twin-purpose terminals for solid and multi-wired conductors
- Mounting on top-hat rail IEC/EN 60715
- Finger and hand touch safe terminals (IP20 protection)
- Ambient operating temperature range: -25 °C to 75 °C
- Additional equipment possible
- Selectivity class 3 for coordination with upstream devices
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Branch circuits protection in industrial and advanced commercial switchgear
- Electrical distribution panels requiring 2-pole miniature circuit breakers
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults and fires, contributing to safer energy use
- Complies with RoHS, reducing hazardous substances in electrical equipment
Warranty Information
Standard Eaton warranty applies; refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller series xEffect FAZ-C10/2 Miniature Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
