Motor Protection Circuit Breaker 0.4-0.63A | 100kA Breaking Capacity | Thermomagnetic by NHP
Motor protection circuit breaker with thermomagnetic switch-off and adjustable overload protection from 0.4 to 0.63A—ideal for industrial and commercial applications. Built for high safety with 100kA breaking capacity and IP2X protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

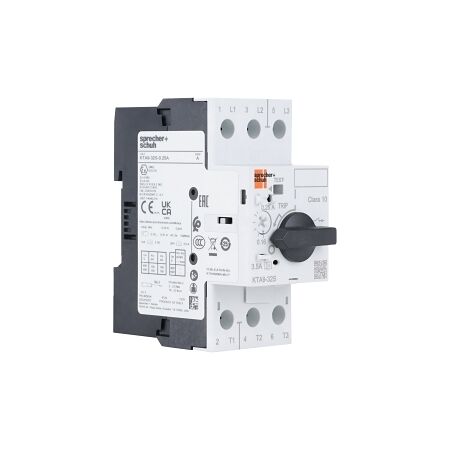

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 0.4 to 0.63A
Brand: NHP
SKU: KTA932S0P63A
Alternatively Known As: Motor Protection Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Permanent Current (Iu): 0.63 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 0.4-0.63 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (Icu) at 400 V AC: 100 kA
- Rated Operation Power at AC 3 400 V: 0.18 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
- Weight: 0.35 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 0.4 to 0.63 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Use in commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of fire and equipment damage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 0.4 to 0.63A is available now for immediate purchase. Ideal for industrial and commercial applications.
