Flexible Conduit Connector: Which Fitting Do You Need?

You've just run 20mm flexible conduit from the meter box to a new switchboard on a shed rewire, and now you're staring at the knockout wondering how the conduit is actually meant to terminate. It doesn't just push in and stay put — you need a fitting for that, and picking the wrong one means redoing the job or leaving a gap that fails inspection. Schnap stocks a range of conduit couplings and fittings for rigid runs, but flexible conduit termination has its own quirks worth walking through.

Why You Need a Connector, Not Just the Conduit

Most rubber flex conduit sold in Australia comes as a plain length — no fitting attached at either end. That's by design: the conduit itself is just the protective sleeve, and the connector is what actually locks it to the enclosure, keeps the entry sealed, and stops the cable inside from chafing against a bare cut edge. Skip the connector and you're left with conduit that's mechanically loose at the termination point, which is exactly where vibration, movement, or a stray knock tends to work it free over time.

A nickel-plated brass rapid connect coupling solves the shed switchboard scenario above — push-fit onto the conduit end, threaded straight into the knockout, no glue or tape needed. For other jobs the right choice depends on the conduit material, the knockout size, and whether the entry needs to stay sealed against dust or moisture.

Matching the Connector to the Job

Not every termination needs the same hardware. A quick-install coupling is fine for a straightforward indoor run, but a threaded adaptor gives you more control when the knockout size doesn't quite match the conduit, or when you're connecting into an enclosure with a specific thread standard already cut.

PVC and galvanised steel flexible conduit generally take the same connector styles, since the fitting clamps or threads onto the outer profile rather than the core material. The exception is anywhere the conduit is exposed to weather or knocks — steel holds up better there, and it's worth checking the entry point stays sealed either way.

Getting the Size Right

Size mismatches are the single biggest reason terminations end up redone. The conduit diameter has to line up with both the connector and the knockout — and it's easy to grab a fitting that's close enough rather than exact, which usually shows up later as a loose termination or a gap that won't seal properly.

If you're working outside this range, measure the knockout itself rather than assuming it matches the conduit label — enclosure manufacturers don't always cut to the same standard.

Common Mistakes When Terminating Flexible Conduit

Assuming the conduit end is already a fitting. The cut end of a length of flexible conduit is just a cut end — it has no thread, no seal, and no mechanical lock on its own. Every termination needs a separate connector, even if the run looks "finished" once it reaches the enclosure.

Mismatching connector size to the knockout. A 20mm coupling forced into a slightly oversized knockout looks fine until the conduit gets a light knock and pulls loose. Measure the actual knockout diameter, not just the conduit size printed on the box.

Skipping the seal on an exposed run. Indoor terminations can often get away without extra sealing, but anything exposed to weather needs the end properly sealed — otherwise moisture tracks straight down the conduit to the switchboard.

Overtightening a brass adaptor onto PVC conduit. PVC flexible conduit is more forgiving than steel, but cranking a threaded adaptor down hard enough to compress it can crack the wall of the conduit right at the termination point — the weakest spot on the whole run.

Terminating before checking you can still pull cable through. Once the fitting is locked down, threading a stiffer cable back through a tight coupling gets a lot harder. Pull your cable through first, then finish the termination.

Frequently Asked Questions

Fittings & Compliance

Do I need a licensed electrician to terminate flexible conduit at a switchboard?

In Australia, any work involving a switchboard connection is electrical work under state licensing rules, so yes — conduit termination at the board should be done or supervised by a licensed electrician, even though the conduit fixing itself is a mechanical task.

What fitting do I need to bring 32mm steel conduit into a switchboard knockout?

A PG29-to-32mm brass adaptor is built for exactly this — it threads into a PG29 knockout and takes 32mm conduit on the other end, so you don't need to redrill the enclosure.

Sizing & Compatibility

Can I use the same adaptor for PVC and galvanised steel flexible conduit?

Generally yes, as long as the outer diameter matches — most brass adaptors and couplings clamp or thread onto the conduit profile rather than the core material, so the same fitting typically works across both.

Do I need a separate seal if the conduit entry is outdoors?

Yes, in most cases. A rubber end sleeve at the entry point keeps water and dust from tracking down the conduit into the enclosure, which matters most on runs exposed to weather.

For the full range of flexible conduit connectors and related fittings, see the shop section below.

Shop Flexible Conduit Connector at Schnap

All fittings and conduit below are available at trade pricing with same-day dispatch from Kingsgrove NSW.

• Connectors & Adaptors
• Rapid Connect Coupling 20mm — brass, push-fit termination
• PG29 to 32mm Adaptor — corrosion-resistant nickel-plated brass
• Rubber End Sleeve M25 — IP54, UV-resistant seal

• PVC Flexible Conduit
• 16mm PVC Flexible Conduit — 30m, grey

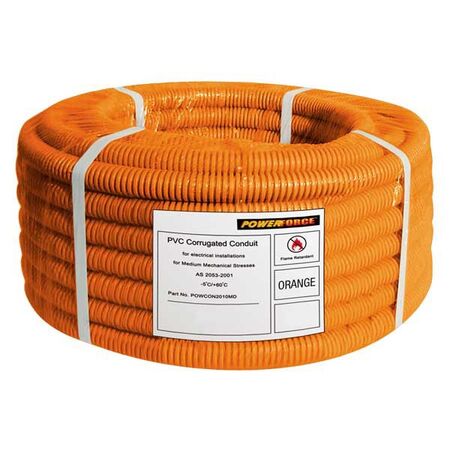

• 20mm Heavy Duty PVC Conduit — 25m, orange
