Registered cablers and sparkies working on NBN installations in Australia are dealing with two very different conduit requirements on the same job: the underground lead-in run from the street boundary to the building, and the internal run from where the cable enters the property to the Network Termination Device (NTD). Each has its own colour, material spec, fitting system, and compliance requirement — and mixing them up creates problems at inspection that aren’t always quick to fix.

This guide covers both runs in practical terms: which conduit goes where, how deep the trench needs to be, what fittings are needed, and where materials like nylon corrugated conduit and liquid-tight PVC fit into the NBN picture. Product links throughout go to the live Schnap catalogue, stocked for same-day dispatch from Kingsgrove NSW.

If you’re also working on the electrical side of the same job, see our Conduit Fittings guide for the full range of couplings, bends, saddles, and inspection access fittings for orange electrical conduit runs.

The Two Conduit Runs on Every NBN Job

Every NBN installation that involves conduit work has two distinct sections with different requirements.

Run 1: The lead-in. This is the underground conduit from the street pit or property boundary to where the cable enters the building. On most residential jobs it’s 20mm or 32mm, runs underground for anywhere from a few metres to 30+ metres depending on the property, and must be orange — the same high-visibility orange used for underground electrical conduit — so it’s identifiable during any future excavation. nbn Co’s own Lead-in Trenching Requirements document specifies the orange conduit must meet AS/NZS 2053.2 and be installed at a minimum depth of 300mm in most residential applications, increasing to 600mm where vehicle crossover is involved.

Run 2: The internal run. From the building entry point to the NTD location — through wall cavities, ceiling spaces, or surface-mounted in a garage or utility room. This run uses white or grey PVC conduit, identified as telecommunications conduit under AS/NZS 3000 Clause 3.9.8.3 (Segregation of Systems). White is the traditional telco standard; grey is often used when the run passes through areas shared with electrical conduit and needs to blend with existing conduit systems.

⚠ Segregation requirement: Under ACMA Standard CA S009 and AS/NZS 3000, a minimum 50mm physical separation must be maintained between telecommunications conduit and low-voltage power conduit where they run in parallel. Where they cross, they must cross at 90 degrees. Sharing the same conduit run with mains power cabling is not permitted. For a guide to the TPS building wire most commonly found in the power conduit runs running alongside NBN, see our TPS Building Wire guide.

Lead-In Conduit: Orange, Underground, and Compliant

The underground lead-in is the section most cablers are asking about when they search for "NBN conduit Australia" — because it’s the section with the most compliance checkpoints and the most variables depending on the property.

nbn Co approves specific conduit for lead-in use. The key requirements from nbn Co’s Lead-in Trenching Requirements document:

• Minimum conduit size: 20mm nominal bore for most residential lead-ins. Where multiple services or future capacity is needed, 32mm or 50mm may be specified.
• Orange colour: Mandatory for underground NBN lead-in conduit for visual identification during excavation.

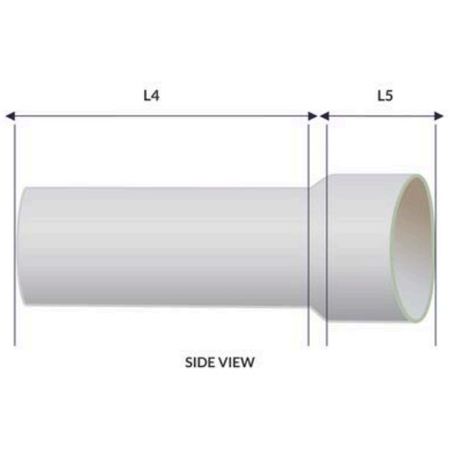

• Compliant to AS/NZS 2053.2: The conduit must carry the standard marking. Pipemakers NBN Co Conduit (available at Schnap in 20mm and 50mm, 4.5m lengths) is specifically manufactured and marked to meet this requirement.
• Draw cord: A draw cord must be installed inside the conduit for the full length of the run, with 1m tails at each end. 4mm polyethylene mono rope with a minimum 5kN breaking load is the standard spec.
• No more than 180° total direction change between access points. That means a maximum of two 90° bends, or four 45° bends, in any uninterrupted run.

Trenching depth requirements (nbn Co Lead-in Trenching Requirements):

Internal Conduit: White, Grey, and What Goes Where

Once the NBN cable is inside the building, the conduit requirement changes. The internal run — from the building entry point to the NTD — uses telecommunications-rated PVC conduit, not the orange heavy-duty conduit from outside.

Standard 20mm or 25mm PVC conduit in white or grey covers most residential internal runs. Plain-to-screwed adaptors are the fitting you reach for most on these runs — they join plain-socket conduit to screwed-thread fittings and to junction boxes, which is the most common transition point in a residential NBN install. Schnap stocks plain-to-screwed adaptors in 20mm through 50mm from both Eltech and Pulset.

Sweep bends, not tight elbows. This is the most commonly overlooked compliance point on internal NBN runs. AS/CA S009 (ACMA’s Cabling Provider Rules) requires that any change of direction in a conduit carrying NBN fibre or high-speed data cable must use a sweep bend with an adequate radius — not a standard 90° elbow. The tight radius of a standard electrical elbow can kink or exceed the minimum bend radius of the fibre or Cat6A cable inside, causing signal degradation or physical damage. A 20mm PVC straight tee or sweep bend from Schnap’s range is the correct fitting here.

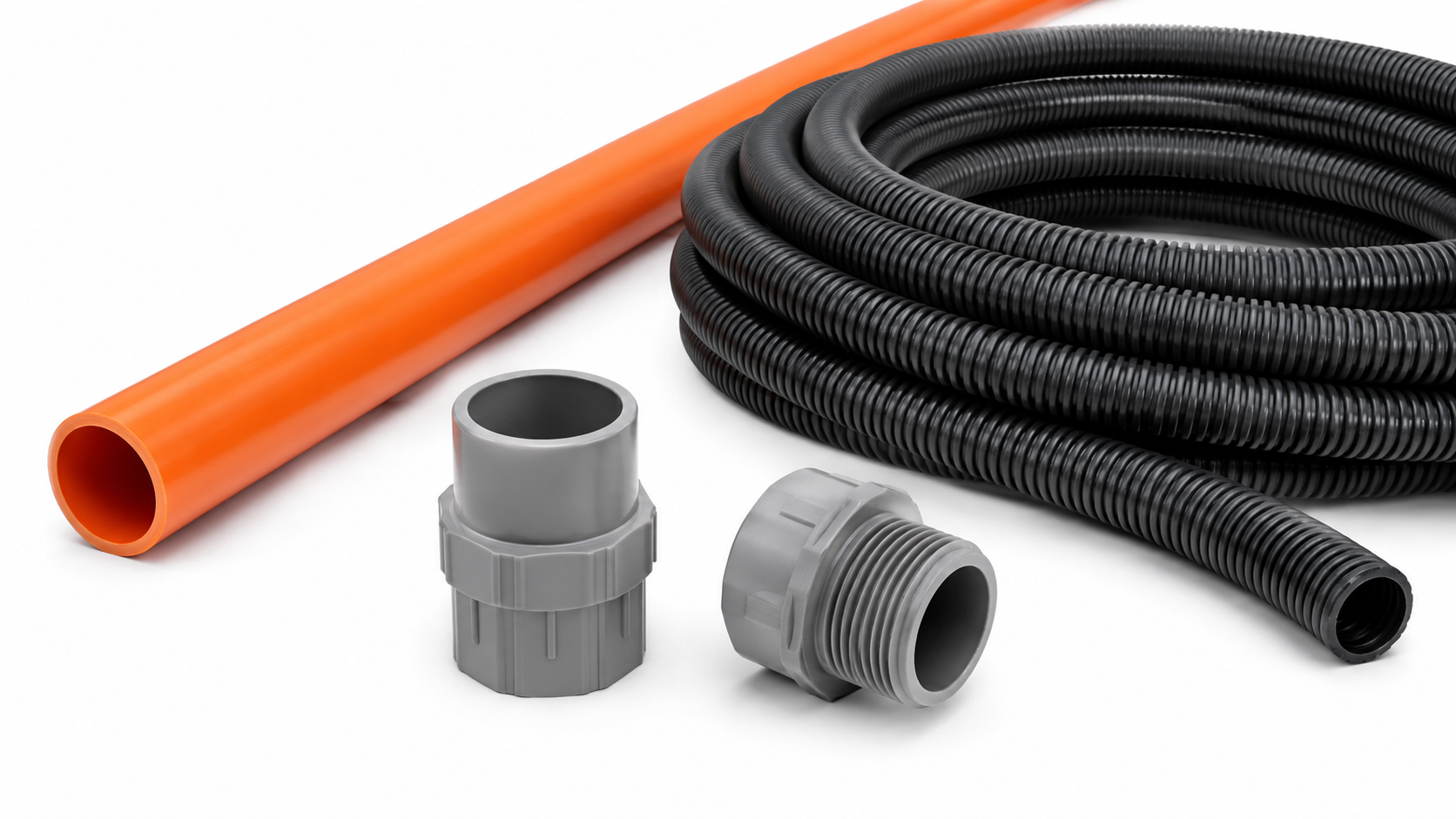

Nylon Conduit (PA6): Where It Fits on NBN Jobs

Corrugated nylon conduit — specifically PA6 (polyamide 6) — is not a direct substitute for rigid PVC on NBN lead-in or internal runs, but it has a specific and useful role on NBN installations that often gets overlooked.

Nylon PA6 corrugated conduit is UV-resistant, halogen-free, and rodent-resistant — making it the correct choice for the short entry section where the lead-in cable passes through the wall cavity or under the eave and into the building. This transition zone often involves an irregular surface, a tight radius around a corner, or a short run inside a roof cavity where rigid PVC is impractical to install neatly. The flexibility of nylon corrugated conduit handles this transition without sharp kinks.

Two PA6 formats are available from Schnap:

The fine pitch (smooth inner bore) variant is the one to specify where fibre or Cat6A is being pulled through — the smooth internal surface significantly reduces friction compared to standard corrugated conduit, which matters on longer flexible sections where pull tension could otherwise damage the cable jacket.

Liquid-Tight PVC Conduit: Wet Areas and Special Environments

Standard NBN conduit runs in residential installs rarely need liquid-tight conduit — but on commercial or industrial NBN installations, or where the internal run passes through wet areas (plant rooms, external walls with water exposure, carpark risers), liquid-tight PVC conduit is the appropriate choice.

Liquid-tight PVC conduit (Cabac CNM series) provides IP-rated sealing along the full length of the conduit run, not just at fittings. Available in black, grey, and orange, in sizes 16mm through 40mm. The grey and black variants are suitable for telecommunications cable runs in damp environments; the orange is for electrical cable runs in the same conditions.

The Cabac Xtraflex series provides an alternative for applications needing a higher degree of flexibility — useful for conduit entry from an external wall into equipment in a plant room, where the conduit needs to navigate tight corners or equipment vibration. Available in 16mm and 32mm, 30m reels, with high UV resistance for above-ground outdoor sections.

Which Fittings for Which Run

The fittings needed on an NBN job split cleanly by run type.

Common Mistakes on NBN Conduit Jobs

• Using tight elbows instead of sweep bends. The single most common mistake. AS/CA S009 requires bends with an adequate cable bend radius — a standard 90° elbow does not meet this for fibre or Cat6A. Use sweep bends throughout.
• No draw cord installed. nbn Co requires a draw cord for the full length of every conduit run. Installing conduit without a draw cord means the cable pull requires pulling the draw cord separately after excavation is backfilled — which usually isn’t possible.
• Orange conduit inside the building. Orange is for underground or protected external electrical runs. The internal NBN run uses white or grey telecommunications conduit. Mixing colours creates a compliance issue and is visually incorrect for inspection.
• Exceeding 180° total direction change. More than two 90° bends (or equivalent) in an uninterrupted underground run means cable pull tension will be too high, risking cable damage. Add an access point (pit or inspection tee) to break up longer runs.
• Inadequate trench depth at driveways. 300mm is the minimum in garden areas, but vehicle crossovers require 600mm. An undersized trench under a driveway is both a compliance failure and a liability issue if the conduit is later crushed.
• Running NBN cable in the same conduit as power. Not permitted. AS/NZS 3000 Clause 3.9.8.3 and ACMA CA S009 both require physical segregation. Separate conduit runs with minimum 50mm separation.

Frequently Asked Questions

Lead-In and Underground

Q: What size conduit do I need for an NBN lead-in?

20mm nominal bore is the minimum for a standard residential NBN lead-in. 32mm is commonly specified where future capacity is needed or where the run is longer than 30 metres. 50mm is used for multi-dwelling units or commercial properties. Always confirm with the nbn Co Lead-in Trenching Requirements document for the specific installation type.

Q: How deep does the NBN conduit need to be buried?

Minimum 300mm in garden and lawn areas, 600mm under vehicle driveways or crossovers. Where crossing under a driveway at less than 600mm, the conduit must be concrete-encased. These are nbn Co minimum specifications — some state or local authority requirements may be higher.

Q: Does the draw cord need to stay in the conduit after the cable is pulled?

Yes. nbn Co requires the draw cord to remain in the conduit after the cable pull is complete. This allows for future cable replacement without excavation. A 1m tail at each end must be coiled and left accessible.

Internal Runs and Fittings

Q: Can I use grey electrical conduit for the internal NBN run?

Grey PVC conduit can be used for internal telecommunications runs in areas where it needs to blend with existing electrical conduit systems, but it must be clearly identified as a telecommunications conduit (not carrying mains power) and must maintain the required separation from any power conduit. White is the more common and clearly identifiable choice for dedicated NBN runs.

Q: What’s the difference between nylon PA6 fine pitch and coarse pitch conduit?

Fine pitch (smooth inner bore) has a smoother internal surface that reduces pull friction — important for fibre optic or Cat6A cable where excessive pull tension can damage the cable. Coarse pitch is standard corrugated conduit, better for general cable protection where pull friction is less of a concern. For NBN cable transitions, fine pitch is the recommended choice.

Q: Can I use liquid-tight conduit for an NBN lead-in underground run?

Liquid-tight PVC conduit can be used for specific sections of an NBN installation where water ingress is a risk — plant rooms, external wall entries, or partially exposed runs in wet environments. For the main underground lead-in, rigid orange PVC conduit to AS/NZS 2053.2 is the standard requirement. Always verify the approved conduit list with nbn Co for the specific installation type.

Compliance and Licensing

Q: Do I need a licence to install NBN conduit?

Yes. Fixed telecommunications cabling work in Australia must be carried out by a registered cabler licensed under ACMA. Electricians may carry out conduit installation work associated with an NBN installation, but the cabling itself requires a registered cabler. This guide covers product selection, not a substitute for compliant installation by a licensed professional.

Q: Who is responsible for the NBN conduit — nbn Co or the property owner?

The underground lead-in conduit from the property boundary to the building is typically the property owner’s responsibility to install before nbn Co pulls the cable. nbn Co installs the cable; the property owner (via a registered cabler) is responsible for the conduit pathway. Always confirm this with nbn Co at the time of installation booking.
