Arc Fault Detection Device AFDD & RCBO | 10A C Curve | 30mA Type A | DIN Rail by NHP
Arc fault detection device with 10A rated current and 30mA leakage—ideal for residential and commercial safety. Built for enhanced protection, with easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

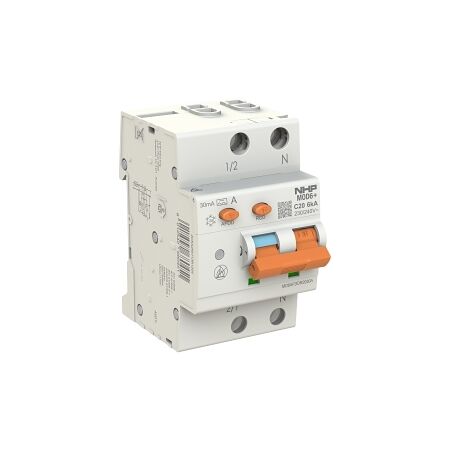

Product Name/Title: NHP MOD6+ Arc Fault Detection Device AFDD & RCBO 6kA 1 Pole and Switched N 10A C Curve 30mA Type A
Brand: NHP
SKU: MD6AFDDR1030A
Alternatively Known As: Arc Fault Detection Device, Residual Current Circuit Breaker, AFDD, RCBO
Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 170 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Mounting Method: DIN rail
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 85mm x 75mm x 52.5mm
- Weight: 0.24 kg
Key Features
- Combines arc fault detection with residual current protection.
- Rated current of 10A and leakage current of 30mA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any installation requiring arc fault detection and residual current protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire caused by electrical faults.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ Arc Fault Detection Device AFDD & RCBO is available now for immediate purchase. Ideal for residential and commercial applications requiring enhanced electrical safety.
