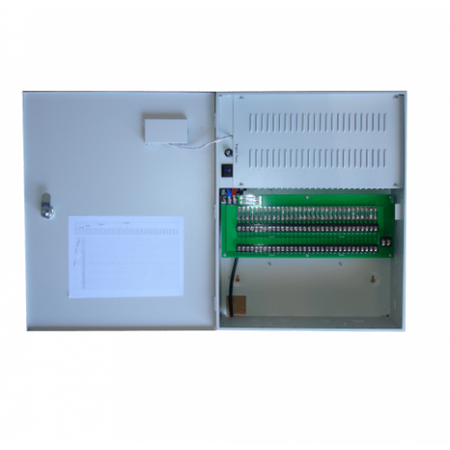

DC 12V 24A Wall Mount PSU 32 Fused Outputs LED Voltage Display Battery Backup Ness

BRAND: Ness
SKU: POW265
$785.50 List price: $1,047.30
+ −
30 Days Return Electricians Unlock Trade Access
DC 12V 24A wall mount power supply with 32 individually fused outputs for CCTV, security and industrial applications. Input voltage is 100-240V AC with 12V DC output and LED voltage display. The unit measures 200mm x 100mm x 300mm and weighs 2.5 kg, with short circuit and overload protection. Review the detailed specifications below for power, protection and installation requirements.
Technical Specifications
  • Input Voltage: 100-240V AC
  • Output Voltage: 12V DC
  • Output Current: 24A
  • Number of Outputs: 32
  • Protection: Short circuit and overload protection
  • Dimensions (H x L x W): 200mm x 100mm x 300mm
  • Weight: 2.5 kg
Key Features
  • Individually fused outputs
  • LED voltage display
  • Battery backup
  • Mains fail and low battery contacts
  • Lockable front door
  • Internal GPO recess
  • Short circuit and overload protection
  • Cooling by free air convection
  • 32 fused outputs
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • CCTV systems
  • Security systems
  • Industrial applications
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Efficient power management reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The DC 12V 24A Wall Mount Power Supply is available now for immediate purchase. Ideal for CCTV and security applications.


FAQ

Q: How many fused outputs does the POW265 power supply have?
A: The POW265 has 32 individually fused outputs.

Q: What protection features are included with the POW265?
A: It includes short circuit and overload protection, as well as battery backup, mains fail and low battery contacts.


A security power supply is another option for 12V DC security system power requirements.

For a wall-mounted setup, an 8A wall mount PSU provides a compact power supply option.

A 12V DC power supply can also be used for security system power applications.

For related application information, refer to the CCTV power supply guide when planning power requirements for CCTV systems.

Available now from SCHNAP — trusted by Australian electricians and electrical contractors.

Brochure Sheet (12VDC-Wall-Mounted-PSU-Brochure.pdf, 768 Kb) [Download]
