DALI Controller: Sizing Channels and Fittings for the Job

A medical suite fit-out has 78 DALI LED drivers on the lighting schedule, spread across nine consult rooms, a waiting area and a corridor, and the board schedule just says "DALI controller". Before anything gets ordered, someone has to work out whether one 8-output DIN-rail controller covers that count and how the fittings split across its channels. Below is how to run those numbers, and what to check on the listing before the controller goes on the order.

What the 8-Output DALI Controller Gives You

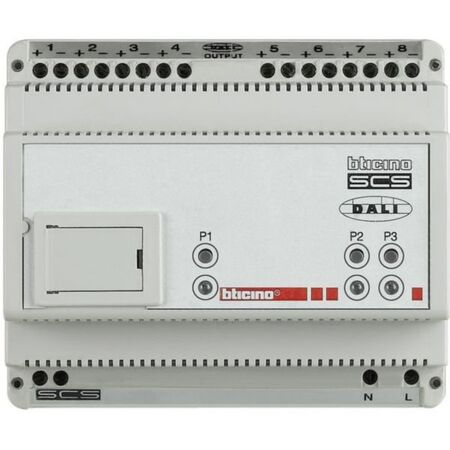

The unit on the Schnap listing is the Bticino MyHOME DIN DALI controller (F429), listed under Other BUS Automation next to the KNX and MyHOME gear it often works alongside. Here is what the listing actually confirms, and what each point means on site.

The 16-per-channel figure is the one to watch. A standard DALI line can address up to 64 control gear, so if you've used single-line DALI controllers before, don't carry that number over. On this unit the limit sits per channel, and the ceiling across all eight channels is 128.

What the listing doesn't say matters just as much. It doesn't state DALI-2 certification, it doesn't say whether the unit powers the DALI lines itself, and it doesn't say the controller runs on its own. It sits in Bticino's MyHOME range and is listed for wired home automation and commercial lighting control, so confirm with the system designer how it will receive its commands before you price it as a self-contained dimming system.

Sizing the Channels: A Worked Example

Start with drivers, not fittings. Some fittings carry two drivers, and the DALI device count is what the channel limit applies to. Then group the drivers by room, because a room split across two channels is harder to commission and harder to fault-find later.

For the medical suite, the count works out like this:

• Consult rooms: 9 rooms with 6 LED panels each is 54 drivers. Two rooms per channel puts 12 drivers on each line with 4 spare, so the rooms take 5 channels (four channels with two rooms, one with a single room).
• Waiting area: 14 downlights on one channel, with 2 spare.
• Corridor: 10 fittings on one channel, with 6 spare.

That's 78 drivers on 7 channels, with the eighth channel left free. One controller covers the job, with headroom on every line.

Why not pack every channel to 16? Because the client nearly always adds fittings, and a full channel means the next small change lands on a second controller and another 6 module spaces in the board. Keeping each room on its own line also means a dead channel takes out one or two rooms, not part of three.

How the drivers on each channel are grouped, addressed and linked to scenes is set during commissioning, so check the Bticino documentation for the exact configuration steps. If your count goes past 128 devices or needs more than eight lines, plan the second controller from the start rather than finding out on site.

DALI-Only Area or Full KNX?

Not every job needs a full building automation system. If the brief is dimming in a set of rooms with simple wall controls, a DALI controller sized by channel is usually the simpler path on the output side. If the client also wants blinds, HVAC and building-wide scenes on one bus, the output side moves to KNX, and the choice comes down to matching a KNX lighting controller to the ballast count.

Either way, remember this controller is a MyHOME device. A DALI-only design on paper still needs a confirmed command source, whether that's MyHOME controls or another control layer the designer specifies.

Presence detection is usually the next question on a medical suite. Corridors and amenities often get sensors, and the right IP rating depends on where each one goes. Our guide to matching DALI occupancy sensor IP rating to the space covers that side. The F429 listing counts DALI devices per channel but doesn't say whether sensors connect on those outputs, so check before you add sensors to your device count.

Common Mistakes When Sizing a DALI Controller

• Carrying the 64-per-line number over. It's habit from single-line controllers. Plan 30 drivers on one channel of this unit and the line is overloaded before anyone powers it up. Size against 16 per channel.
• Counting fittings instead of drivers. Twin-driver fittings quietly push a channel past its limit. Take the count from the fitting datasheets, not the lighting plan symbols.
• Filling every channel to 16. It looks efficient on paper, but the first variation forces a second controller and a board rework. Leave a few spare on each line.
• Assuming it runs on its own. The name says DALI controller, so it gets treated as self-contained. If nothing is set up to send it commands, you have dimmable drivers and no way to dim them. Confirm the command source with the designer before ordering.
• Forgetting board space and heat. Six module spaces disappear fast in a tight board, and the unit is rated to 45°C. Check both before the board is built, not when the controller arrives.

Frequently Asked Questions

Compliance & Installation

Does a DALI controller need to be installed by a licensed electrician?

Yes. The controller takes a 110-240V mains supply in the switchboard, so in Australia it must be installed by a licensed electrician to AS/NZS 3000. Programming can be done by a lighting integrator, but the mains connection is licensed work.

Can a DALI controller go in a standard switchboard?

Usually, if there's room. The MyHOME DIN DALI controller mounts on DIN rail and takes 6 module spaces. It's IP20, so it has to sit inside an enclosure, and its rated operating range is 5-45°C.

Sizing & Performance

How many DALI drivers can one controller run?

This one supports up to 16 DALI devices on each of its 8 channels, so 128 in total. In practice, plan for fewer per channel so there's room for added fittings.

Why do DALI dimmed LEDs flicker at low levels?

It often comes down to the driver and its minimum dim level rather than the controller. Check driver compatibility and dimming range before you start swapping hardware. The common causes are covered in our guide to fixing LED dimmer flicker.

Is the F429 DALI controller DALI-2 certified?

The listing doesn't say. If the project spec calls for DALI-2, check the Bticino datasheet or ask before ordering.
