Retractable Extension Lead: Reel vs Straight Lead Guide

The 15-metre lead ends up in a heap behind the compressor every afternoon, and by Friday nobody can find the end that plugs into the wall. An auto-rewind cable reel fixes that specific problem — not because it's a fancier lead, but because it puts the coiling job on a spring instead of on someone's hands.

Why Straight Leads Wear Out Faster in Daily Workshop Use

A straight extension lead doesn't fail because the cable is bad — it fails because of how it gets stored between jobs. Coiled loosely over a hook, stepped on, or dragged back in from the van floor, the plug end and the first metre of cable take the most damage. In a workshop running the same lead five or six times a day, that wear compounds fast. The core issue isn't the lead itself, it's that nothing forces a consistent, gentle coil every single time.

This is where an auto-rewind reel changes the equation. The spring mechanism winds the cable back onto the drum at a controlled tension every time, so the cable isn't kinked, crushed underfoot, or left half-coiled in a doorway. It's less about convenience and more about consistency — the reel does the same thing every time a straight lead relies on someone remembering to.

Matching Reel Capacity to What's Actually Running Off It

The mistake that shows up most in workshops isn't picking the wrong reel — it's picking one based on outlet count without checking what's drawing power through it. A 4-outlet reel looks like the obvious upgrade over a single-outlet lead, but if a compressor and a work light are running off it simultaneously, the combined draw matters more than how many things can physically plug in.

In practice, a 10A-rated reel is fine for a single tool or a light plus a charger — but running two mid-draw tools off a 4-outlet reel at the same time is where the total load starts to matter more than the outlet count. If the workshop regularly runs multiple tools off one reel, the 15A option gives more headroom before anything trips.

Common Mistakes When Switching to a Retractable Reel

Buying on outlet count instead of combined draw. Four outlets look like more capacity, but if the tools plugged in draw more than the reel's amp rating combined, the extra sockets don't help — the circuit still trips.

Running tools with the cable still coiled. It's an easy habit to carry over from a straight lead — plug in and go — but a reel that's only half-unwound builds heat faster than the cable is designed to handle under sustained load.

Wall-mounting without checking the bracket load rating. A loaded reel is heavier than it looks once the full cable length is wound in, and a bracket rated for a lighter unit can work loose over months of vibration from workshop equipment.

Assuming IP20 covers outdoor or wash-down areas. IP20-rated reels are built for dry indoor use. Storing or running one in a van bay that gets hosed out, or leaving it exposed near an open roller door in wet weather, sits outside what the rating is designed for.

Treating the reel as maintenance-free. The retraction spring and cable guide still wear over time, particularly with multiple full-length pulls a day. A reel that starts rewinding unevenly or slower than usual is generally worth checking before it's relied on for a job that can't afford a dead lead.

Frequently Asked Questions

Choosing the Right Reel

can a 4-outlet reel run power tools and a work light at the same time?

Generally yes, as long as the combined draw of everything plugged in stays under the reel's rated amperage — the 4-outlet reel is rated to 10A total across all four sockets, not per outlet.

why does my retractable lead get hot when fully wound?

A coiled cable can't shed heat as efficiently as a straight run, so the effective safe current typically drops when the cable is only partly unwound. As a general rule, unwind the reel fully for anything drawing close to its rated capacity.

Ratings and Compliance

do retractable extension leads need to be tested and tagged in a commercial workshop?

In most commercial and trade environments in Australia, portable leads including cable reels fall under regular test and tag requirements — check the specific schedule that applies to the workplace, as intervals vary by industry and risk classification.

what's the difference between 10A and 15A cable reel ratings?

The rating reflects the maximum continuous current the reel is built to carry safely. For workshops running higher-draw equipment off one reel, the 15A rated reel gives more headroom than a 10A unit before load becomes a concern.

Setup and Mounting

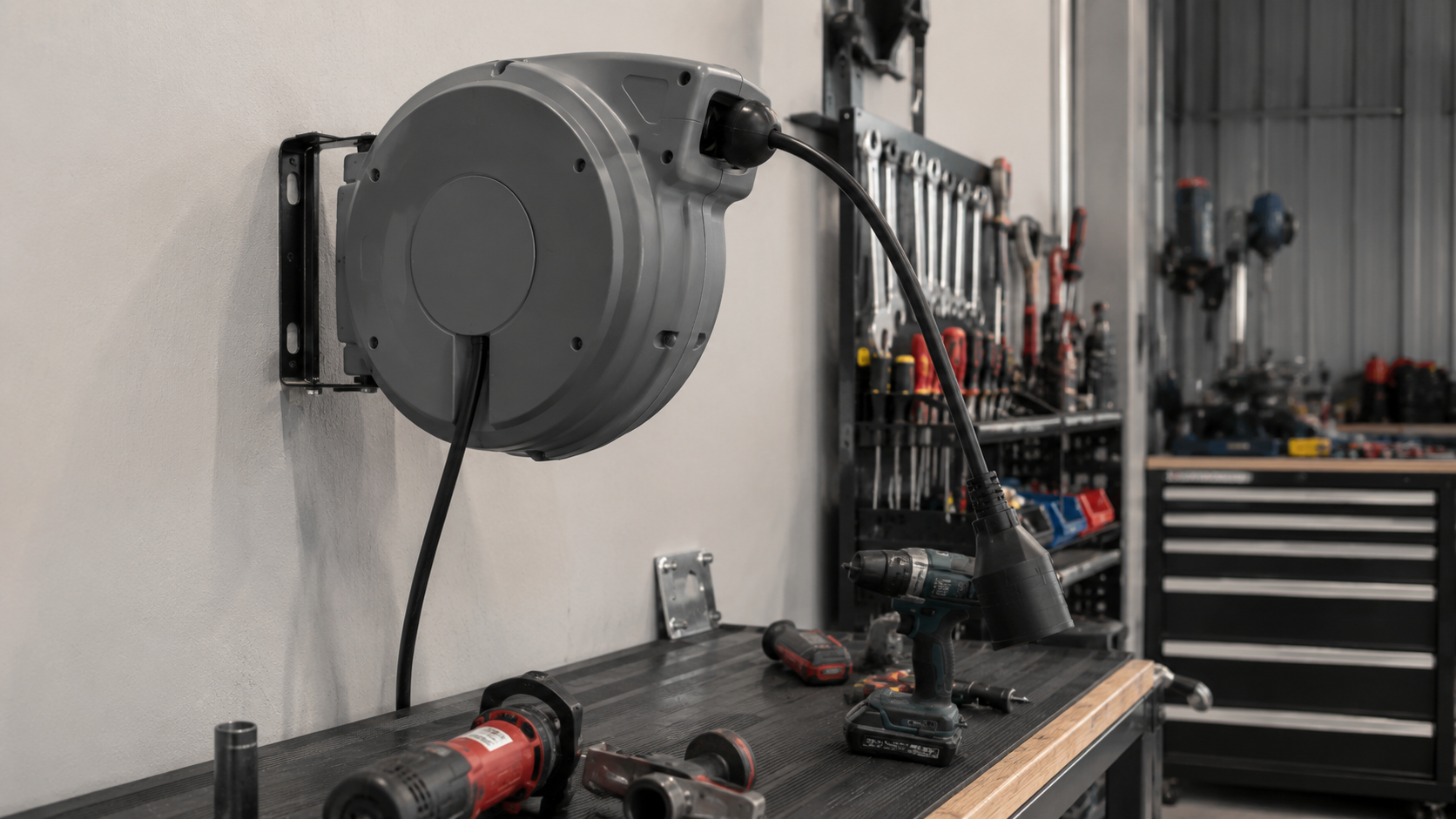

can I wall-mount an auto-rewind reel above a workbench?

Most auto-rewind reels are designed for wall or ceiling mounting — the 18m 10A reel is a common choice for bench-side mounting since it keeps the cable off the floor entirely. Confirm the bracket and wall surface can carry the reel's full loaded weight before fixing it in place.

how often does the auto-rewind spring need replacing?

There's no fixed interval — it depends on daily use. A reel used multiple times a day in a busy workshop will typically show wear sooner than one used occasionally, and uneven or slow rewinding is usually the first sign it needs attention.

Shop Retractable Extension Lead at Schnap

Trade pricing and same-day dispatch from Kingsgrove NSW on the full range below.

• Single Outlet Reels
• Auto Rewind Cable Reel 18m 10A -- standard-duty reel for regular bench and workshop use
• Auto Rewind Cable Reel 18m 15A -- higher-draw rating for tools with heavier load
• Auto Retracting 15m Extension Lead -- compact single-outlet reel, easy retrofit for existing bench setups

• Multi-Outlet Reels

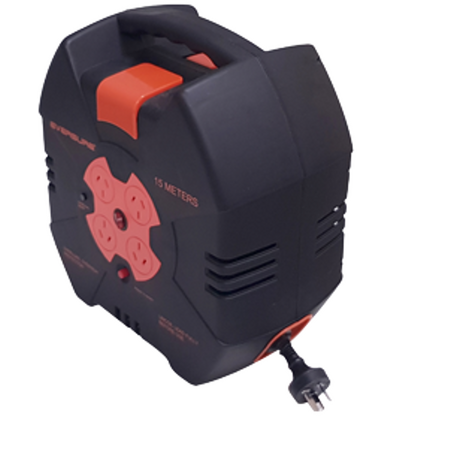

• Auto Retracting Power Lead Reel 15m 4 Outlet -- four sockets on one reel for running multiple tools from a single point
