Bootlace Ferrule Sizes: Match the Right Ferrule to Your Wire

A loose termination in a terminal block is one of those faults that takes forever to chase — intermittent, no obvious cause, and usually traced back to a ferrule that was slightly too small or too large for the wire it was crimped onto. Getting bootlace ferrule sizes right before you order saves that headache entirely. If you're also working with TPS building wire, the cross-section you're running directly determines which ferrule you need — so it helps to have both sorted before you start.

Why Ferrule Size Matters More Than Most People Think

A bootlace ferrule does one job: it consolidates stranded wire conductors into a solid pin that seats cleanly and consistently inside a screw terminal or push-in clamp. When the size is right, the pin fills the terminal bore, the screw or spring clamp grips it properly, and the connection holds under vibration and thermal cycling. When it's wrong, problems follow quickly.

Too small, and the ferrule rattles in the terminal — the clamping force distributes unevenly across the pin, which can loosen over time or create a high-resistance contact point. Too large, and the ferrule won't seat fully, leaving the insulation collar partially inside the terminal bore where it can interfere with clamping. Neither scenario is acceptable in a switchboard or control panel where connections need to stay reliable.

The size of a bootlace ferrule is defined by two measurements: the cross-sectional area it's rated for (in mm²), which matches the wire's conductor cross-section, and the pin length (in mm), which needs to be compatible with the terminal block's clamping depth. Most standard DIN rail terminal blocks are designed around common pin lengths — typically 6mm, 8mm, 12mm, or 18mm — so for most panel work, matching the cross-section is the primary decision and pin length follows from the terminal spec.

Bootlace Ferrule Size Chart: Cross-Section to Colour Code

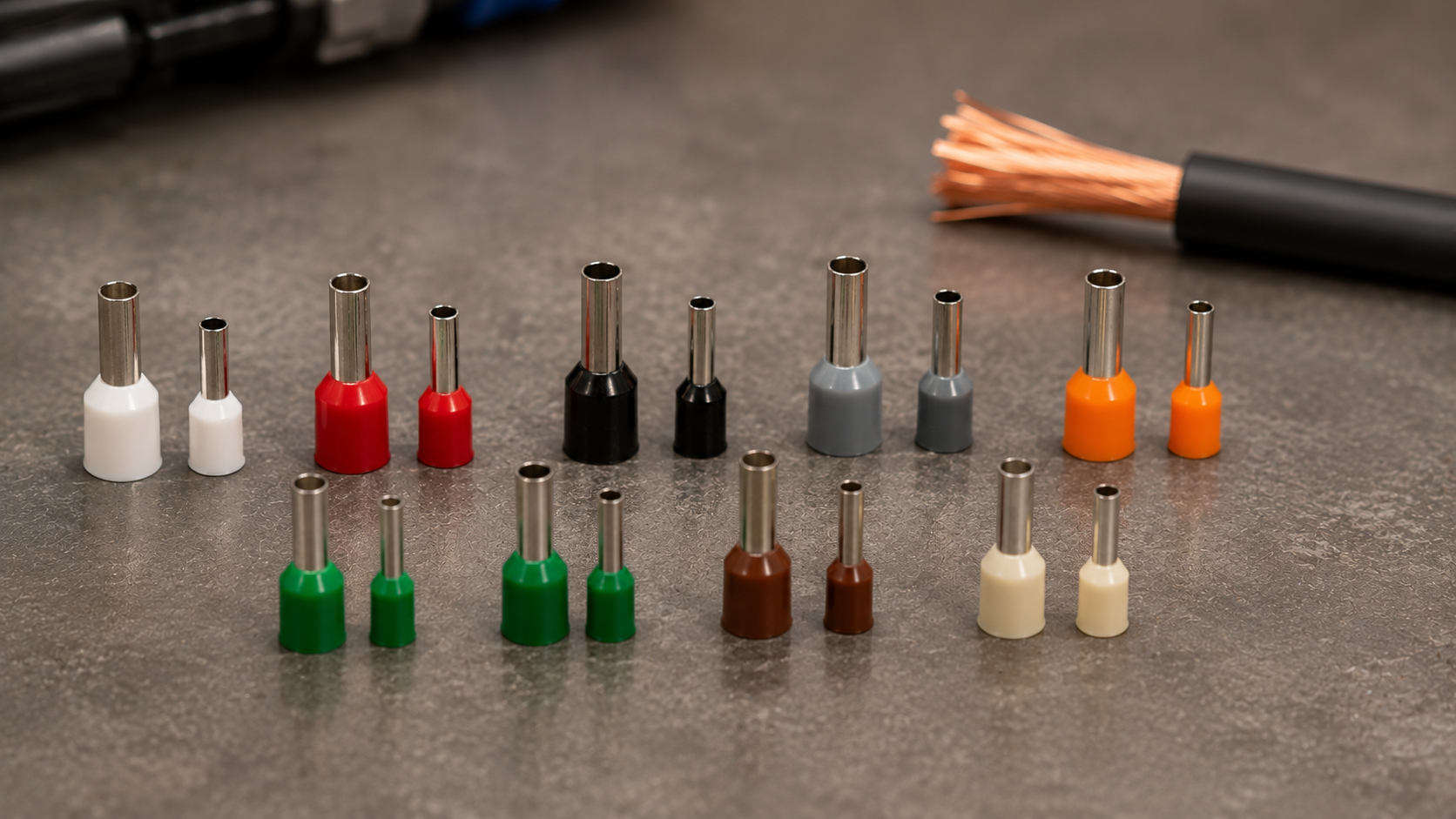

The colour coding system for insulated bootlace ferrules follows a widely adopted convention across European and Australian panel wiring practice — though it's worth noting this isn't universally mandated by a single Australian standard, so minor variations exist between manufacturers. The table below reflects the most common convention you'll encounter across the products stocked at Schnap:

Insulated vs Non-Insulated: Which One for Panel Work?

Most panel and switchboard terminations use insulated bootlace ferrules — the plastic collar protects the wire entry point, helps with conductor identification via colour coding, and provides a clean appearance that inspectors and maintenance electricians appreciate. The collar also acts as a strain relief point where the wire enters the ferrule barrel, reducing the risk of the strands pulling back out if the wire is moved during or after installation.

Non-insulated ferrules are typically used where terminal blocks have very tight spacing or shallow entry depth that won't physically accommodate a collared ferrule, or in applications where the terminal design itself provides adequate conductor retention. They're less common in standard panel wiring but still useful for specific terminal types or retrofit situations where clearances are tight.

For a new panel build or any switchboard work where you have flexibility, insulated is generally the better default choice. The colour coding alone is worth it for any job that someone else might need to trace later — and in an inspection context, neat colour-coded terminations read as professional workmanship.

If you're routing two conductors into a single terminal position, a standard single ferrule won't work regardless of whether it's insulated or not — that's a job for a twin bootlace ferrule sizing guide, which covers the sizing logic for that scenario separately.

Not Sure Which Sizes You Need? Start With a Kit

For electricians who don't do panel work regularly, committing to individual packs of every size upfront is overkill. A pre-insulated ferrule kit gives you a working selection across the most common cross-sections — typically 0.5mm² through to 2.5mm² or 4mm² — in a single purchase. It's a practical way to cover most residential and light commercial panel jobs without ordering six separate packs and ending up with 450 ferrules in sizes you rarely use.

If your work runs regularly to larger cables — 6mm², 10mm², or beyond — or if you're doing production panel builds where you'll burn through a single size quickly, individual packs in the specific sizes you need will be more economical than kits.

It's also worth considering whether your terminations call for a different connector type entirely. For panel connections where a wire is looping through rather than terminating dead-end, forked terminals handle that differently and are worth understanding alongside ferrules as part of your panel hardware toolkit.

Common Mistakes When Selecting Bootlace Ferrule Sizes

Going by wire diameter instead of cross-sectional area. The mm² rating on a ferrule refers to the conductor cross-section, not the overall cable diameter or the conductor diameter. A 1.5mm² TPS active conductor and a 1.5mm² flexible control wire are both 1.5mm² conductors, but their overall diameters differ. Always match the ferrule to the conductor cross-section marked on the cable, not to a physical measurement.

Ignoring pin length relative to the terminal block. A ferrule with a 6mm pin seated in a terminal designed for a 12mm pin will sit shallow in the bore — the clamping mechanism may grip the collar rather than the barrel, which is not a reliable connection. Check your terminal block spec sheet for recommended pin length before ordering in volume.

Crimping a ferrule onto wire that's too large for the barrel. Forcing stranded wire into a ferrule one size down is a common site shortcut when the right size isn't to hand. The result is a barrel that won't close properly under crimp pressure, leaving a loose or deformed termination. Order the right size — it's not worth the callback.

Using a single ferrule where two conductors need to share a terminal. Putting two stripped wires into one standard ferrule barrel and crimping them together looks plausible but rarely results in consistent clamping on both conductors. One wire tends to sit offset, and the connection integrity is compromised. The right answer for dual-conductor termination is a twin ferrule — not a workaround with a single.

Assuming colour means size without checking. If you're pulling ferrules from a mixed kit or a job bag that's been used before, confirm the size marking on the ferrule itself rather than relying solely on colour — particularly for the 0.75mm² grey and 2.5mm² grey which share a colour in some product ranges.

Frequently Asked Questions

Sizing and Selection

What size bootlace ferrule do I need for 2.5mm² wire?

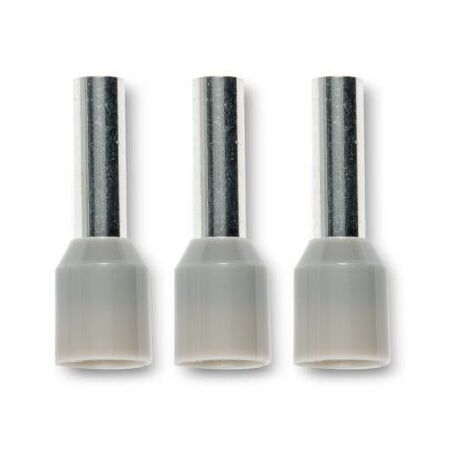

A 2.5mm² ferrule — typically grey in colour under the common convention — is the correct match for 2.5mm² conductor wire. For most DIN rail terminal blocks, an 8mm or 18mm pin length will be appropriate depending on the terminal's clamping depth. Check the terminal block datasheet if you're unsure which pin length to spec. You'll find the 2.5mm² grey ferrule in packs of 500 at Schnap.

Can I use a 1.5mm² ferrule on 1.0mm² wire to get a tighter fit in the terminal?

No — sizing up to get a snugger feel in the terminal doesn't work the way you might expect. The ferrule barrel needs to be filled by the conductor for the crimp to hold properly. A 1.5mm² barrel around a 1.0mm² conductor will leave voids inside the crimp, reducing mechanical strength and increasing resistance at the joint. Use the correct size for the wire.

Compliance and Licensing

Do I need a licence to install bootlace ferrules in a switchboard?

Yes. Terminating conductors inside a switchboard or distribution board is electrical work under Australian law and requires a licensed electrician in all states and territories. The ferrule itself is a component — the act of making the connection inside a live or to-be-energised switchboard is the licensable work. DIY switchboard termination is not permitted regardless of how simple the connection looks.

Is there an Australian standard that specifies bootlace ferrule colour coding?

There is no single Australian standard that mandates a specific colour convention for bootlace ferrules. The colour coding widely used in Australia follows European convention (closely aligned with DIN 46228), but this is a de facto industry practice rather than a hard AS/NZS requirement. Individual job specs or client standards may specify a particular colour convention — check the project spec before ordering if colour coding consistency matters for the installation.

Practical Use

I'm doing a panel build and not sure which sizes I'll need — is a ferrule kit worth it?

For a one-off or occasional panel job, yes — a pre-insulated kit covering 0.5mm² to 2.5mm² or 4mm² gives you the most-used sizes without committing to bulk packs of each. The 535-piece pre-insulated kit is a practical option for this. If you're doing production panel builds where you know exactly what wire sizes you'll run, individual packs in the sizes you burn through most will be better value.

What's the difference between pin length options for the same cross-section?

Pin length affects how deep the ferrule seats inside the terminal bore. Shorter pins (6mm or 8mm) suit compact or shallow terminal blocks — common in control panels with space constraints. Longer pins (12mm, 18mm, or more) are used in terminals designed for deeper clamping, or in applications where the extra depth provides better pull-out resistance. Match the pin length to your terminal block specification — mixing lengths across a panel that uses one terminal type creates inconsistency in termination quality.
