Twin Bootlace Ferrule: Sizes, Uses & When You Need One

Two conductors, one terminal position — it sounds straightforward until you're staring at a terminal block that won't accept a double-up without the right ferrule. Twin bootlace ferrules are built specifically for this situation, and getting the size selection wrong means either a loose termination or a ferrule that physically won't seat. Understanding how twin ferrule sizing works alongside bootlace ferrule sizes for single conductors gives you the full picture for any panel wiring job.

What a Twin Bootlace Ferrule Actually Does

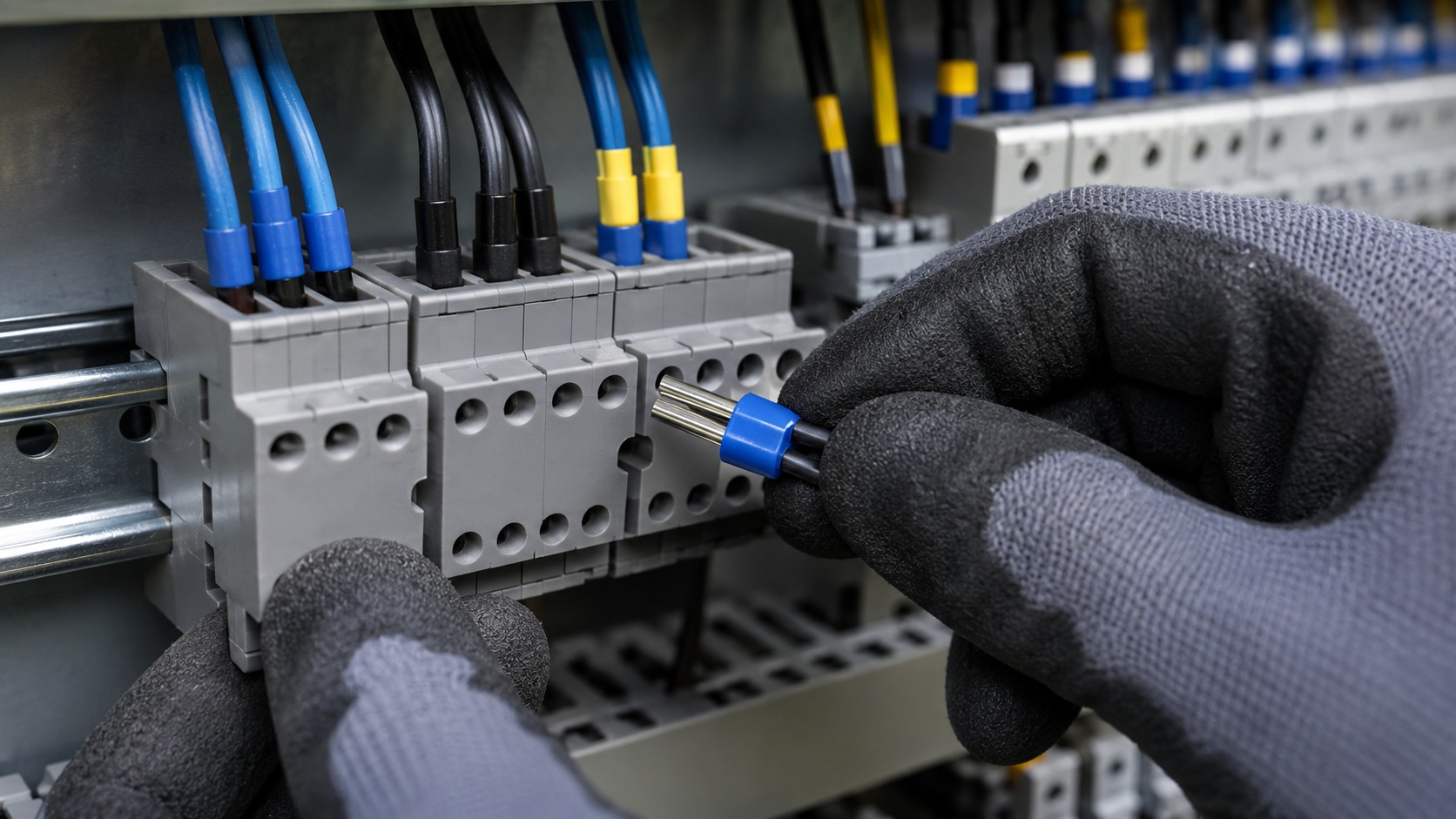

A twin bootlace ferrule — sometimes called a twin entry ferrule or dual conductor ferrule — has two separate conductor barrels joined at a single insulated collar. Both conductors insert side by side, get crimped simultaneously, and exit into the terminal block as a single terminated end. The terminal block sees one entry, not two.

The practical use case comes up constantly in panel building: common neutrals, shared circuit returns, or any configuration where two wires need to land on the same terminal position without stacking them loosely under a single screw. In a properly built switchboard, bare conductors doubled up under a screw clamp — without a ferrule rated for that configuration — are a termination that won't pass inspection.

Twin ferrules are also the correct answer in PLC and automation panels where terminal block density is high and conductor management matters. A neat twin ferrule termination keeps the wiring organised and makes future tracing significantly easier compared to two independently terminated singles sharing the same slot.

Twin Ferrule vs Two Single Ferrules: Which Approach to Use

The question comes up at the bench regularly: can you just use two single ferrules side by side in the same terminal entry? The short answer is that it depends entirely on the terminal block design.

Some terminal blocks — particularly push-in or cage-clamp types — have a single conductor entry point by design. Trying to fit two single ferrules into one entry physically won't work, or results in a termination where only one is properly gripped. A twin ferrule solves this by presenting the two conductors as a single unit sized to fit that entry point correctly.

Where the terminal block has a genuine dual-entry design (two separate conductor entry holes on the same terminal position), two individual single ferrules is the correct approach — each conductor gets its own crimped sleeve, and each enters its own entry. Using a twin ferrule in a dual-entry terminal forces both conductors through a single hole on a block designed to handle them separately, which is the wrong application.

The distinction matters more than it looks on first inspection. Check the terminal block datasheet or manufacturer markings before reaching for twin ferrules. In panel builds where forked terminals are already in the toolkit for multi-position bridging, twin ferrules handle the conductor-entry side of the same problem — they're complementary tools, not interchangeable ones.

Sizing Twin Ferrules: The Cross-Section Logic

Twin ferrule sizing follows a different logic to single ferrules, and this is where most mistakes happen. The size printed on a twin ferrule — say, 1mm² — refers to the cross-section of each individual conductor barrel, not the combined total.

So a twin 1mm² ferrule accepts two conductors of 1mm² each. It does not accept one 2mm² conductor, and it does not accept two 0.5mm² conductors doubled up as a workaround for a 1mm² ferrule you don't have. Each barrel is sized for one conductor of that rating, full stop.

The practical implication: you need to know the cross-section of each conductor going into the twin ferrule, and match to a ferrule rated for that conductor size — not the combined load. A common scenario in panel work is routing two 1.5mm² conductors to a shared neutral position on a terminal block. The correct product is a twin 1.5mm² ferrule — not a single 3mm² ferrule, not two individual 1.5mm² singles jammed together.

Where twin ferrule sizing intersects with TPS cable work — for example, consolidating two neutral conductors from separate TPS building wire runs at a terminal block — the 1.5mm² twin ferrule is typically the right product for standard residential and light commercial circuits, since 1.5mm² is the common conductor cross-section in that cable.

Mixing Conductor Sizes in a Twin Ferrule

What happens when the two conductors going into one terminal position aren't the same size? This comes up more often than you'd expect — a control circuit might bring a 0.75mm² signal wire together with a 1mm² return at the same terminal point.

In practice, most twin ferrule manufacturers specify that both conductors entering a twin ferrule should be the same cross-section. The crimp is designed around consistent barrel fill — when one conductor is significantly thinner than the other, the crimp geometry doesn't grip both equally, and you end up with a termination where one conductor can pull through under mechanical stress.

The correct approach for mismatched conductors going to the same terminal position is typically to bring them in on adjacent terminal blocks with a bridge connector, rather than forcing them into a twin ferrule that isn't rated for the combination. This is worth discussing with your terminal block supplier if you're specifying a panel build from scratch — the terminal block selection can simplify or complicate the ferrule choices significantly.

Common Mistakes With Twin Ferrules

Sizing to the combined cross-section instead of per-conductor. A twin 2.5mm² ferrule is not the answer for two 1.25mm² conductors. Each barrel is rated for one conductor of the stated size. Getting this wrong means under-crimped barrels — the conductors may feel secure at first but won't hold under vibration or repeated maintenance cycles.

Using a single ferrule with two conductors stuffed in. It's a shortcut that gets attempted when twin ferrules aren't on the van. A single ferrule barrel filled with two conductors won't crimp consistently — the die geometry is wrong for that fill profile and one conductor typically sits off-centre. The result is a termination that passes visual inspection but fails under pull-test.

Applying twin ferrules to dual-entry terminal blocks. As covered above, some terminal blocks are designed with separate entries for two conductors. Installing a twin ferrule on these blocks routes both conductors through one entry on a block that expects them in separate entries — you lose the mechanical advantage the block was designed to provide.

Using mismatched crimp tooling. Twin ferrules require a crimp tool die that can handle the wider ferrule body. A single-ferrule die profile will often produce an asymmetric crimp on a twin ferrule — one barrel gets proper compression, the other gets caught at the edge of the die and under-crimped. If your existing crimper doesn't have a twin ferrule die option, it's worth checking the tool manufacturer's compatibility list before burning through a pack of ferrules with inconsistent results.

Ignoring colour coding between brands. Twin ferrule colour coding isn't universal — a red ferrule from one manufacturer might indicate 1mm², while another uses red for 1.5mm². When mixing brands on the same panel build, verify the size from the product specification rather than relying on colour alone. This is particularly relevant if you're restocking mid-job with a different brand than what you started with.

Frequently Asked Questions

Sizing & Selection

Can I use a twin 1.5mm² ferrule for two 1mm² conductors to get a tighter fit?

No — and it's a common workaround that creates the opposite problem. Undersized conductors in an oversized ferrule barrel leave gaps in the crimp, which means neither conductor is properly retained. Match the ferrule size to the actual conductor cross-section, not to a size you happen to have in stock. Check the product specification for the correct size before ordering.

What's the difference between twin 1mm² and twin 1.5mm² in panel work — when does it matter?

The 1mm² twin is typically used in control and instrumentation circuits where the conductor cross-section is 1mm². The 1.5mm² twin is more common in power circuit terminations — shared neutrals, lighting circuits, and general wiring where 1.5mm² is the conductor size. The choice is determined by the conductor, not by the terminal block or the current load at that point.

Installation & Compliance

Do I need a licence to terminate wires using bootlace ferrules in an electrical panel in Australia?

Yes. Termination work inside an electrical switchboard or distribution board is electrical work under Australian state and territory legislation — it requires a licensed electrician or someone working under direct supervision of a licensed electrician. The ferrule itself is a fitting, not a regulated product, but the act of connecting conductors to terminal blocks in a panel is licensed work regardless of the termination method used.

Is there an Australian standard that specifies when twin ferrules are required versus single ferrules?

AS/NZS 3000 sets the overarching requirement for mechanically secure terminations, but it doesn't mandate ferrule type at a product level. The specific requirement for twin ferrules typically comes from the terminal block manufacturer's installation documentation — if the block is rated for single-entry only, that documentation effectively mandates a twin ferrule for dual-conductor termination. Always check the terminal block datasheet alongside the Wiring Rules.

Stocking & Brands

Legrand vs Clipsal vs Eltech twin ferrules — are they interchangeable for the same size?

Dimensionally, twin ferrules of the same cross-section from different manufacturers are generally interchangeable for crimping purposes — the barrel dimensions follow the conductor cross-section, so a 1mm² twin from any brand should crimp correctly with the same die. The practical difference is pack size, collar length (which affects how deep the ferrule seats), and colour coding convention. As noted above, don't rely on colour alone to confirm size when switching brands.

How many twin ferrules should I stock for a typical panel build?

It depends on the terminal block count and wiring density, but for a typical commercial switchboard build, packs of 500 in the most common sizes (1mm² and 1.5mm²) are generally the efficient stock unit — enough to cover a full job without over-ordering. Smaller 100-pack options work for van stock where you need range coverage across sizes without committing to bulk quantities of each.
