Automotive Twin Core Cable: Get the Amp Rating Right

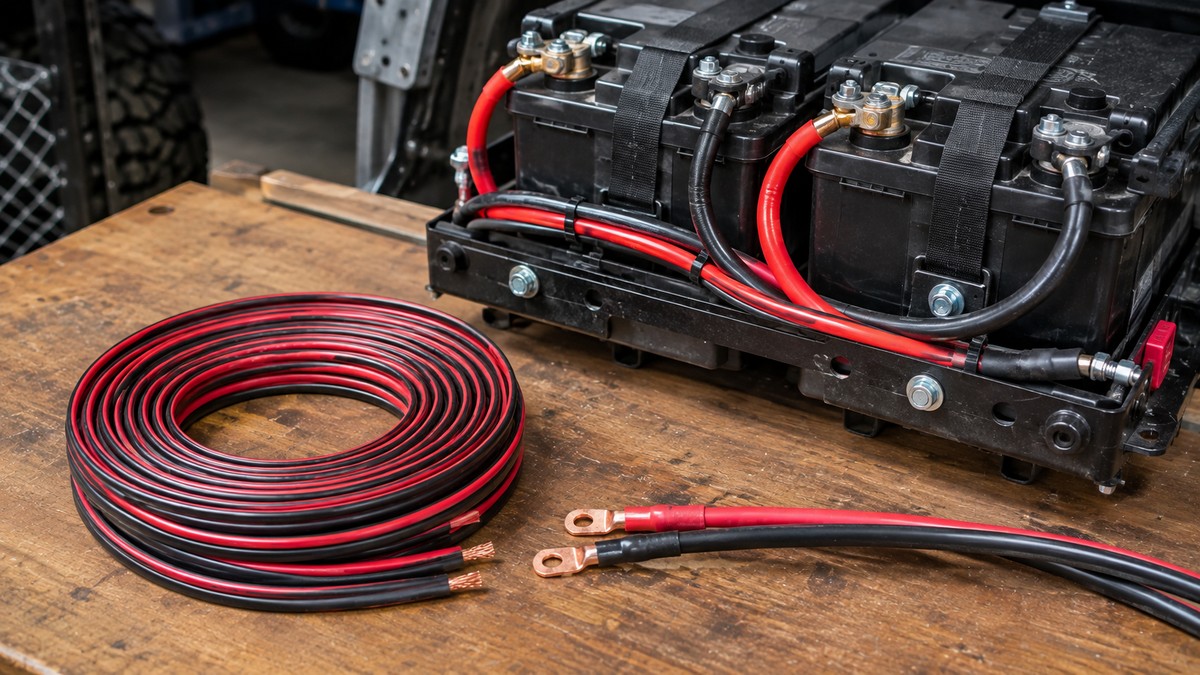

A 4WD owner wiring a DC-DC charger into a dual battery setup runs six metres of what the parts counter sold him as "2mm twin core." By the time the fridge, the charger, and a set of driving lights are all pulling through it, the cable is warm to touch and the charger keeps dropping into a fault state. The cable wasn't undersized on paper -- it was undersized on amps.

Gauge Tells You the Size, Not What It Can Carry

A lot of general-purpose automotive twin core cable is sold by conductor size alone -- "1.5mm," "2mm" -- with no stated current rating anywhere on the reel or the label. That works fine for a dash light or a horn. It falls apart the moment the circuit is carrying real load, because two cables with the same conductor size can have different stranding, different insulation, and in practice a different safe continuous current depending on the brand and construction.

This is part of Schnap's automotive and vehicle cable range, and the products in it split roughly into two camps for exactly this reason: cable rated explicitly in amps, and general-purpose vehicle cable rated by size and construction. Knowing which camp a circuit needs is the actual decision point -- not just picking a gauge that "feels right" for the job.

Matching Twin Core to What You're Actually Running

A DC-DC charger feeding a second battery typically pulls somewhere in the 20-40A range depending on the unit. A solar regulator wired to a rooftop or portable panel is usually lighter, often under 20-30A for the panel sizes common on caravans and camper trailers -- though as a general rule it pays to check the regulator's actual rated input current rather than assume from panel wattage alone. Accessory circuits -- fridge, USB sockets, driving light relays -- tend to sit lower again, often under 15A per circuit once fused individually.

Electra Cables' automotive twin core range is built around this problem directly -- each size states a continuous amp rating on the cable itself, rather than leaving it to be inferred:

Run length matters too. Voltage drop across a long 12V run -- say, a battery tray at the front of the vehicle to a canopy fridge at the back, or a caravan's chassis rail to a battery box up front -- adds up faster than it would on a 240V circuit of the same length, simply because the operating voltage is so much lower. In practice, this usually means sizing up one step from what a short bench-test run would need, particularly on anything longer than three or four metres.

Where the amp-rated Electra range is overkill -- low-current accessory wiring, engine bay runs exposed to heat and oil, or anywhere flexibility matters more than raw carrying capacity -- Würth's FLRYY 2-core vehicle cable is the better fit. It's built with an oil- and heat-resistant jacket rather than standard PVC, which in practice holds up better tucked in near an engine bay or run through a wheel arch loom.

Once the cable's picked, the next decision is how it terminates. Twin core run into a fuse block or terminal block needs both conductors crimped cleanly -- loose strands at that point cause more field failures than the cable itself ever does. That's exactly the gap covered by choosing the right twin bootlace ferrule for the conductor size on hand.

Common Mistakes on 12V Twin Core Circuits

Buying by gauge label alone. As above -- "2mm" on its own tells you nothing about continuous current. Check the amp rating printed on amp-rated cable, or the manufacturer's current chart for general-purpose twin core.

Ignoring run length. A cable sized correctly for a one-metre bench test can still be undersized once it's actually run six or eight metres through the vehicle, because of voltage drop over distance.

Standard PVC jacket in the engine bay. Heat and oil exposure near the engine will degrade a standard PVC-jacketed cable faster than one built for it -- this is where oil-resistant FLRYY cable earns its place over a general hardware-store equivalent.

Loose strands at the terminal. Twin core that isn't ferruled before it goes into a screw or spring terminal tends to fray under vibration over time, which is a common cause of intermittent connections on vehicles that spend time off-road.

Sizing for one device instead of the combined load. A charger, a fridge, and driving lights sharing one feed need the cable sized for the combined draw, not just the single largest device on the circuit.

Skipping individual fusing. Each accessory circuit run off the main feed should generally be fused close to the battery on its own, rather than relying on one fuse sized for the whole loom.

Frequently Asked Questions

Sizing & Amp Rating

what size twin core cable do I need for a 40a dc-dc charger?

As a general rule, a 40A charger sits close to the top end of the range, so 6mm 48A twin core gives useful headroom rather than running right at the cable's rated limit -- particularly if the run is longer than a couple of metres. Always cross-check against the charger manufacturer's own cable sizing chart for the specific run length involved.

is flryy cable rated for engine bay heat?

FLRYY vehicle cable is built with an oil- and heat-resistant jacket, which in practice makes it a common choice for engine bay and chassis runs where standard PVC-jacketed cable would degrade faster. It's not amp-rated in the same way as the Electra Cables range, so it's better suited to lower-current accessory wiring than to a high-draw charger feed.

Installation & Compliance

do I need a licence to wire a dual battery system in my 4wd?

12V automotive electrical work generally sits outside the licensed electrician scope that applies to 240V mains wiring in a home or workshop. That said, requirements can vary by state and by what's being modified, and some vehicle warranties have their own conditions around DIY wiring changes -- it's worth checking both before starting anything beyond straightforward accessory wiring.

can I run automotive twin core cable through the same loom as factory wiring?

In practice, yes, provided it's properly loomed and protected from chafe points -- shared conduit or split loom, secured away from moving parts and sharp edges. Where a new circuit terminates into an existing fuse block or junction, matching the ferrule to the wire at that connection point matters just as much for a factory-loom tie-in as it does for a standalone run.

For the full range of automotive twin core cable and related fittings, see the shop section below.

Shop Automotive Twin Core Cable at Schnap

Both ranges below ship with trade pricing and same-day dispatch from Kingsgrove NSW.

• Electra Cables Twin Core (Amp-Rated)
• 3mm 20A Twin Core, 100m -- accessory and lighter circuits
• 4mm 28A Twin Core, 100m -- solar regulator and smaller charger runs
• 5mm 37A Twin Core, 100m -- mid-size DC-DC charger runs
• 6mm 48A Twin Core, 100m -- higher-output chargers, longer runs

• Würth FLRYY 2-Core Vehicle Cable
• 0.75mm 2-Core -- light accessory wiring
• 1.0mm 2-Core, 50m -- general accessory and engine bay runs
• 1.5mm 2-Core, 50m -- heavier accessory circuits

Find the full automotive twin core cable range at Schnap -- trade pricing and same-day dispatch from Kingsgrove NSW.
