Commercial Track Lighting: Choosing Heads by Watts, Beam and CCT

A shopfitter has the track up and the shelving stocked, then the first head throws a hard white circle across the wrong shelf. Most commercial track lighting problems start right there, with heads picked on wattage alone instead of on what the space needs the light to do. This guide walks through output, beam angle, colour temperature and dimming so you can order the right heads the first time.

Start With the Job, Not the Wattage

Retail shelving, a gallery wall and an open-plan office all use track lighting, but each one asks something different of the head. A shop wants punch and a tighter beam on the product. A gallery wants even, controllable coverage on a wall. An office usually wants softer, wider general light.

The ceiling matters too. On a suspended grid ceiling, panels sometimes make more sense than track, and the LED panel sizes for ceiling grids guide covers that retrofit before you commit to a track layout.

Match Beam Angle to Mounting Height

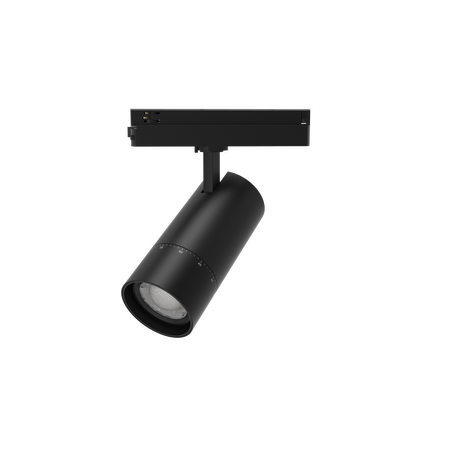

Beam angle decides how much of the wall or shelf each head covers. A narrow beam gives an accent with a hot centre. A wide beam covers more surface but with less punch. If you are not sure on site, an adjustable head like this 30W tri-CCT zoom track light, listed with a 24-60 beam, lets you set the spread once the track is up instead of guessing from a data sheet.

Height changes the maths. Where the track hangs on drops from a high or open ceiling, suspended track lighting changes the throw distance, so measure from the lamp to the surface you are lighting, not from the ceiling.

Wattage Is Only Half the Story

Two heads at the same wattage can put out different amounts of light, so compare the lumen figure on the product page before you compare watts. For a general wash across a showroom floor, a higher-output head such as this 30W tri-colour head rated at 2400lm gives you a real number to work from. For a tight display or a narrow shelf, a lower-output head like the 12-24W tri-CCT track light is easier to keep from over-lighting the product.

Tri-CCT: Settle the Colour Temperature Once

Tri-CCT heads typically let you choose between three colour temperatures, usually warm, neutral and cool white, from a switch on the head or driver. That means one head type can cover a whole fit-out, with warmer light on fashion and soft displays and cooler light on tools or hardware. Confirm the exact options on each product page, then set every head to the same setting before the final aiming, so tones do not drift from one bay to the next.

Dimming and Control: Match the Head to the Driver

A head that says dimmable is only half the answer. The dimmer or controller has to suit the type of dimming the head uses. A 40W tri-CCT triac dimmable spotlight is listed for triac (phase-cut) dimming, while a 30W DALI track head responds to a DALI controller instead.

Mixing the two on one circuit is where trouble starts. Several dimmable heads on one dimmer can flicker or buzz if the load or the dimmer type does not match, and fixing LED dimmer flicker is a lot easier before the ceiling is closed up. On DALI jobs, work out the channels first. Sizing DALI controller channels covers how to do it.

Check the Head Suits the Rail Before You Order

Heads are not universal across every track system, so settle the rail first. Confirm whether the run is 1-circuit or a 3 circuit track lighting system, because a 3-circuit run typically lets you switch or dim groups of heads separately, while a single circuit controls them all together. Then check the adaptor type on the product page, as some heads are listed for a specific circuit type, like this 3-circuit 35W tri-colour head.

Common Mistakes on Commercial Track Jobs

• Ordering on wattage alone. Heads at the same wattage can differ in output and beam, so shelves end up unevenly lit. Compare lumens and beam angle, not just watts.
• Assuming any head fits any rail. Heads can be listed for a particular circuit type or adaptor, and a mismatch may mean a head that will not seat or connect properly. Check the listing before you order for the whole job.
• Pairing the wrong dimmer with the head. A triac head on a DALI setup, or the reverse, will not dim as expected and can flicker. Match the dimming type first, then the load.
• Leaving tri-CCT heads on mixed settings. One bay reads warm and the next reads cool, and the client notices. Set every head the same before the final aiming.

Frequently Asked Questions

Choosing the Right Head

What wattage track light do I need for a retail shop?

There is no single figure. It depends on mounting height, beam angle and how bright the space already is, so compare lumens rather than watts. For general retail floors, mid-to-higher output heads such as this 30W tri-colour track light are a common starting point, and you can step down to lower-output heads for tight displays.

What beam angle is best for lighting shelves?

A narrower beam gives more punch on the product but a smaller footprint, while a wider beam covers more shelf with less intensity. An adjustable zoom head lets you set the spread on site and is often the safer choice when the layout may change.

Dimming and Control

Can I dim tri-CCT track lights with a standard LED dimmer?

Only if the head is listed as dimmable and the dimmer matches the dimming type, such as triac phase-cut. A head like this 21-30W tri-CCT dimmable track light is listed as dimmable, but check the dimmer's load range against the number of heads on the circuit before you wire it.

Do I need DALI for commercial track lighting?

No. DALI is one control option, useful when you want addressable control or integration with a wider lighting system. Many jobs run fine on phase-cut dimming or simple switching. If you do go DALI, every head and the controller need to be DALI-compatible.

Compliance and Installation

Do track lights count as emergency lighting in a shop?

Standard track heads are not emergency fittings. Emergency and exit lighting is a separate requirement, generally covered by AS 2293 and the NCC, and it is normally specified by the building designer or certifier. For one way to meet it without a separate exit fixture, see our post on emergency oyster lights and AS 2293.

Do I need a licensed electrician to install track lighting?

In Australia, connecting track or fittings to fixed 240V wiring is generally licensed electrical work, so the supply connection, circuit changes and dimmer wiring should be done by a licensed electrician. Rules vary by state and territory, so confirm with your local regulator for the specific job.
